Simpson Strong-Tie MIU2.37/16 (2-5/16″ x 16″) Face Mount I-Joist Hanger – G90 Galvanized
Simpson Strong-Tie MIU2.37/16 Description

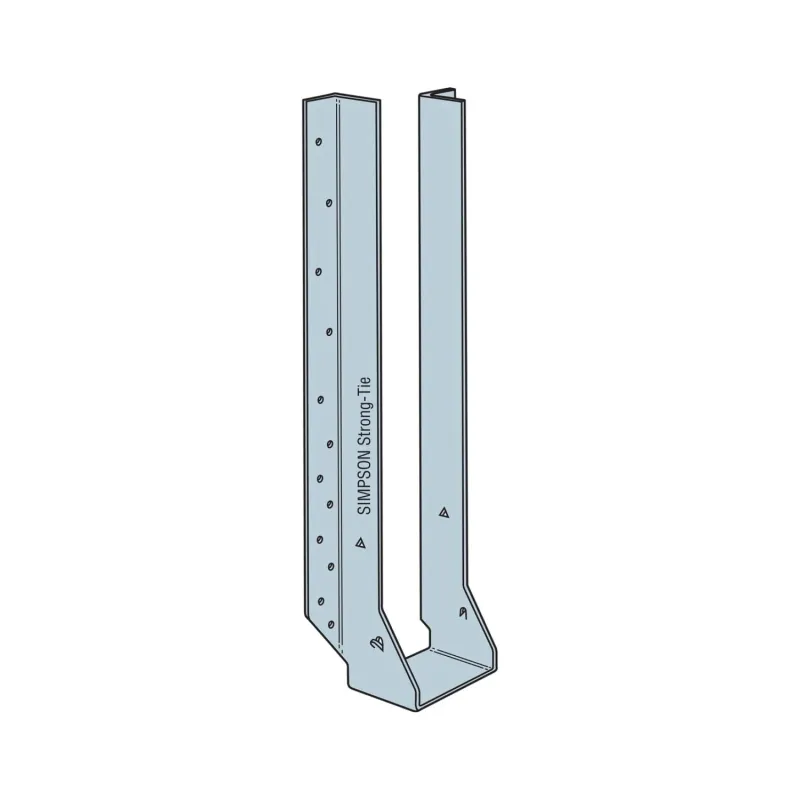

The Simpson Strong-Tie MIU2.37/16 is a durable face-mount I-joist hanger made from 14-gauge steel with a G90 galvanized finish, designed for securing engineered wood joists in various framing applications.
Simpson Strong-Tie MIU2.37/16 Includes
- (1) MIU2.37/16 Face Mount I-Joist Hanger
Simpson Strong-Tie MIU2.37/16 Features
- G90 Galvanized Finish for corrosion resistance
- Full-height joist support minimizes rotation
- Precision-engineered 14-gauge steel construction
- Face-mount design for secure attachment
- Compatible with LVL, LSL, and PSL engineered wood products
Simpson Strong-Tie MIU2.37/16 Applications
- Interior floor framing for load-bearing connections
- Roof framing for superior uplift resistance
- Deck framing for covered outdoor structures
- General wood construction in residential and commercial projects
Simpson Strong-Tie MIU2.37/16 Installation Overview
- Use 10d common nails or Simpson Strong-Tie SD screws for full load capacity
- Secure hanger to header with all nail holes filled for maximum strength
Simpson Strong-Tie MIU2.37/16 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Face – (24) 0.162″ x 3-1/2″ Nails, Joist – (2) 0.148″ x 1-1/2″ Nails |
| For Treated Lumber | No |
| Height | 15-1/2″ |
| Joist size | 2-5/16″ X 16″ |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 2-3/8″ |
