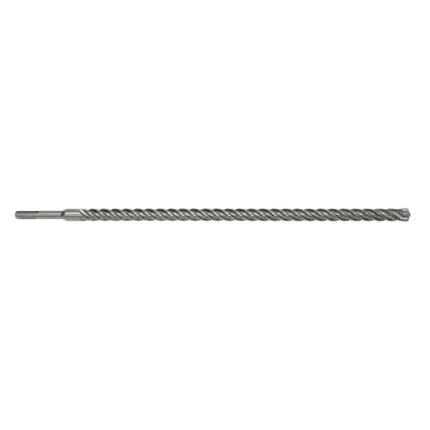

Simpson Strong-Tie MDMX10013Q (1″ x 13″) SDS-max Shank Quad-Head Drill Bit for Concrete Drilling (1 Piece)
Simpson Strong-Tie MDMX10013Q Description
The SDS-max Quad-Head Drill Bit is designed for efficient drilling in concrete and masonry, featuring a durable carbide tip and a quad-head design for enhanced performance.
Simpson Strong-Tie MDMX10013Q Includes
- (1) SDS-max Quad-Head Drill Bit
Simpson Strong-Tie MDMX10013Q Features
- Uniformly brazed carbide inserts for longer bit life
- Centering tip for easy spot drilling
- Chromium-nickel-molybdenum steel alloy body for durability
- Heat-treated and shot-peened finish for increased hardness and reduced wear
- Conforms to ANSI Standard B212.15
- Chisel-shaped head for efficient material penetration
- Patented multi-flute spiral for improved dust removal
- 4 x 90° head geometry for rebar penetration
Simpson Strong-Tie MDMX10013Q Applications
- Concrete drilling
- Masonry drilling
- Brick and block applications
Simpson Strong-Tie MDMX10013Q Specifications
| Diameter | 1 in. |
| Length | 13 in. |
| Drilling Depth | 8 in. |
| Head Type | Quad Head |

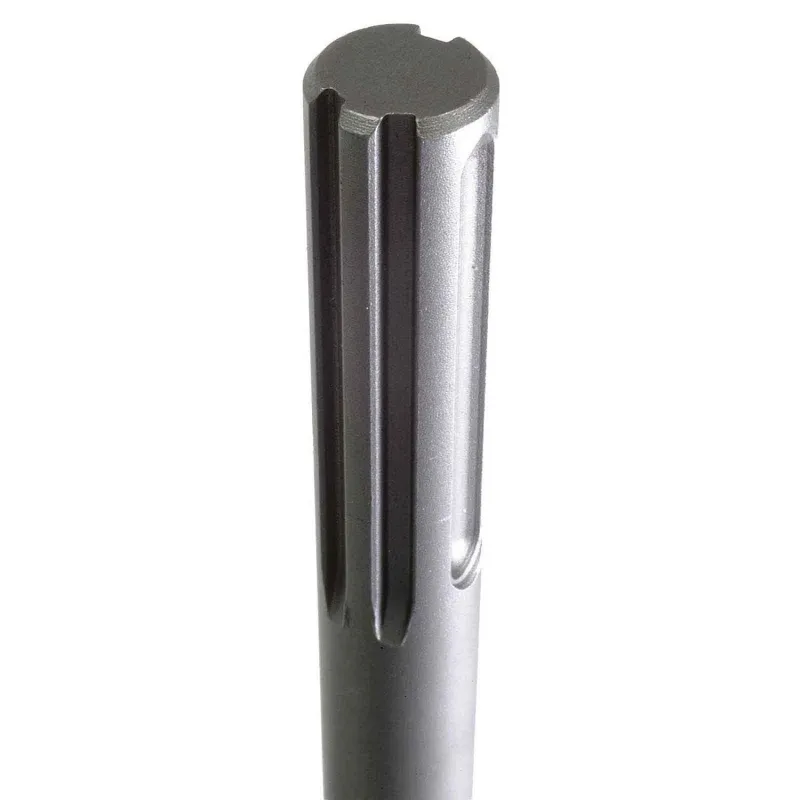

| Shank Style | SDS-max |
| Material | Hardened Steel |
