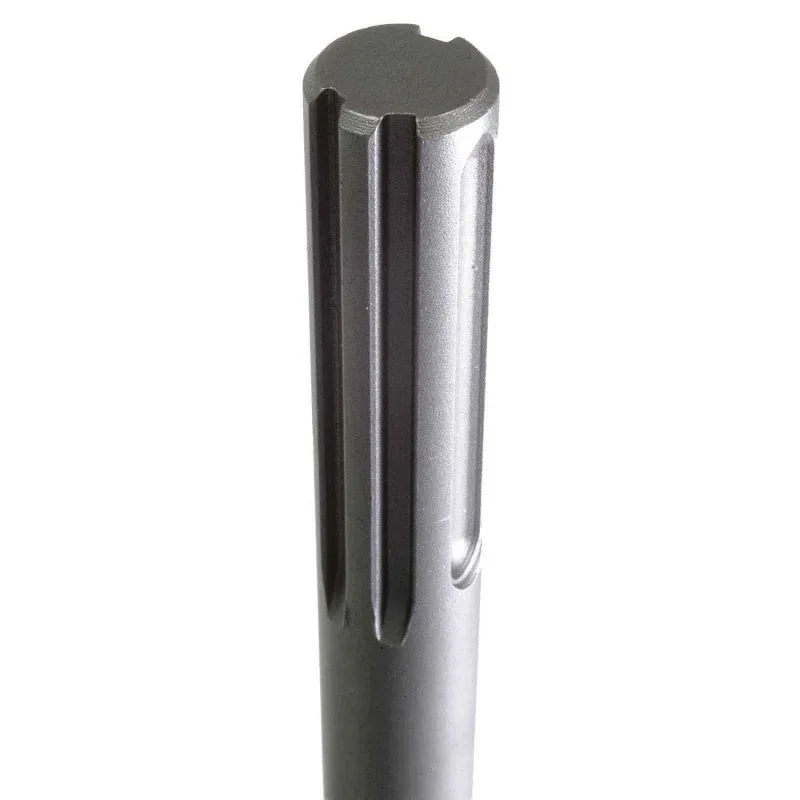

Simpson Strong-Tie MDMX07536Q (3/4″ x 36″) SDS-max Shank Quad-Head Drill Bit for Concrete Drilling (1 Piece)
Simpson Anchors MDMX07536Q Description
The SDS-max Quad-Head Drill Bit is designed for concrete and masonry drilling, featuring a durable quad-head design for enhanced performance.
Simpson Anchors MDMX07536Q Includes
- (1) SDS-max Quad-Head Drill Bit
Simpson Anchors MDMX07536Q Features
- Uniformly brazed carbide inserts for longer bit life
- Centering tip for easy spot drilling
- Chromium-nickel-molybdenum steel alloy body for extended service life
- Heat-treatment and shot-peened finish for increased surface hardness
- Conforms to ANSI Standard B212.15
- Chisel-shaped drill-bit head for efficient material penetration
- Patented multi-flute spiral for improved drilling speed
- 4 x 90° head geometry for rebar crushing and reduced sticking
Simpson Anchors MDMX07536Q Applications
- Concrete Drilling
- Masonry Drilling
Simpson Anchors MDMX07536Q Specifications
| Material | Hardened Steel |
| Shank Type | SDS-max® Shank |
| Head Type | Quad Head4x Drill Bit |
| Diameter (in.) | 4-Mar |
| Drilling Depth | 31 |
| Length (in.) | 36 |
| Packaging Qty. | 1 |
