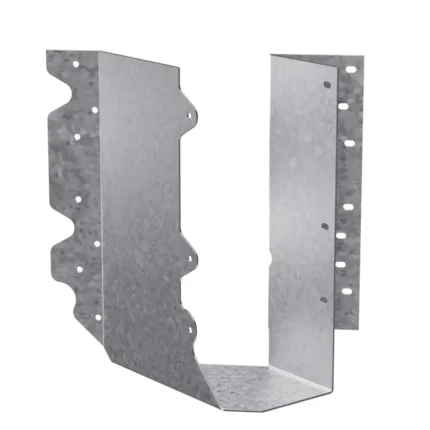

Simpson Strong-Tie LUS48Z (4″ x 8) Face Mount Hanger ZMAX Finish
Simpson Strong-Tie LUS48Z Description
The Simpson LUS48Z 4×8 Face Mount Hanger is designed for secure joist-to-beam connections, featuring a ZMAX finish for corrosion resistance and durability.
Simpson Strong-Tie LUS48Z Includes
- (1) 4×8 Face Mount Hanger
Simpson Strong-Tie LUS48Z Features
- Bent Top-Flange Design: Allows for flexible installation on beams, headers, or wall plates.
- Light-Duty Load Capacity: Designed for joist and rafter connections in smaller structural applications.
- Galvanized Steel Construction: Provides corrosion resistance for long-term durability.
- Compact & Space-Saving: Perfect for installations where traditional hangers won’t fit.
- Designed for Solid Sawn Lumber: Compatible with various wood framing applications.
Simpson Strong-Tie LUS48Z Applications
- Deck & Porch Construction: Provides secure joist support for outdoor decks, patios, and gazebos.
- Roof Framing: Ideal for rafter-to-wall plate connections in sloped roof structures.
- Floor Joist Connections: Supports light-duty joist-to-beam connections in residential and commercial buildings.
- Outdoor & High-Moisture Environments: The ZMAX coating ensures protection against moisture and humidity, making it ideal for treated lumber and exterior applications.
- General Light-Duty Framing: Suitable for residential and light commercial projects where a bent hanger is required.
Simpson Strong-Tie LUS48Z Installation Overview
- Secure the hanger to the supporting beam, header, or wall plate using appropriate nails or structural screws.
- Ensure the joist or rafter is properly seated within the hanger for maximum load-bearing capacity.
- Follow local building codes and manufacturer specifications for fastener selection and placement.
- Suitable for top-flange mounting, providing a stable and reliable connection.
Simpson Strong-Tie LUS48Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Header – (6) 0.162 x 3-1/2″ Nails OR (6) #9 x 1-1/2″ SD Connector Screws; Joist – (4) 0.162 x 3-1/2″ Nails OR (4) #9 x 2-1/2″ SD Connector Screws |
| For Treated Lumber | Yes |
| Height | 6-3/4″ |
| Joist size | 4″ X 8″ |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 18 Gauge |
| Width | 3-9/16″ |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
