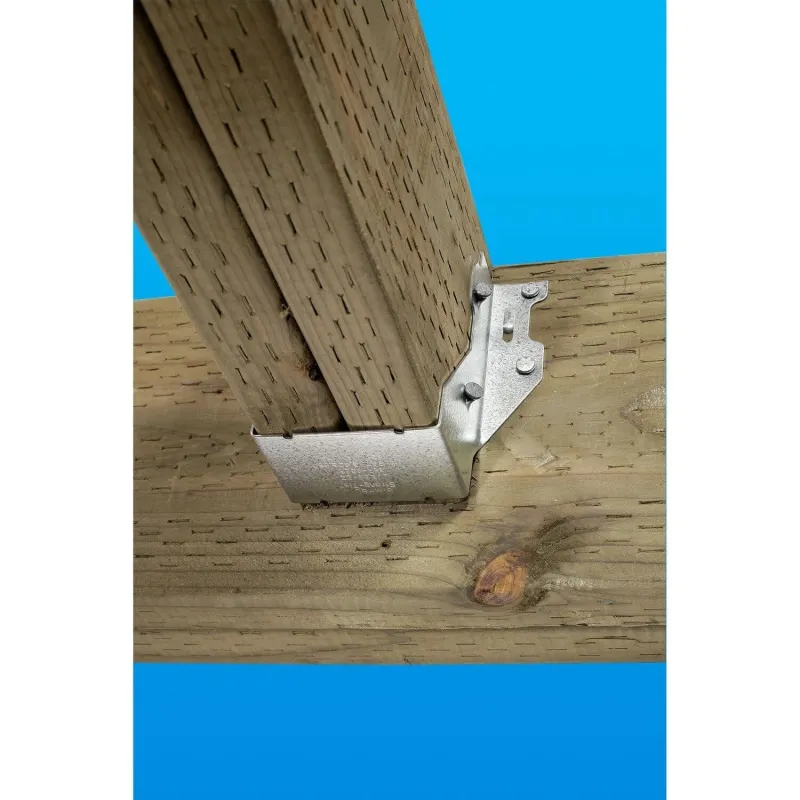

Simpson Strong-Tie LUS28-2Z (Double 2″ x 8″) Face-Mount Joist Hanger with ZMAX Finish
Simpson LUS28-2Z Description
The Simpson Strong-Tie LUS28-2Z is a double 2×8 face-mount joist hanger with ZMAX finish, designed for superior performance in wood-framed construction.
Simpson LUS28-2Z Includes
- (1) Double 2×8 Face-Mount Joist Hanger with ZMAX Finish
Simpson LUS28-2Z Features
- ZMAX Coating for Corrosion Resistance
- Double-Shear Nailing Technology
- Versatile Applications
- Code-Compliant Strength
Simpson LUS28-2Z Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Roofing Structures: Provides reliable connections for rafters and beams.
- Outdoor Wood Projects: Ideal for porches, gazebos, and other exterior structures.
Simpson LUS28-2Z Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Angle nail placement for optimal strength.
- Ensure proper fastener installation to achieve published load values.
Simpson LUS28-2Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Header – (6) 0.162 x 3-1/2″ Nails OR (6) #9 x 1-1/2″ SD Connector Screws; Joist – (4) 0.162 x 3-1/2″ Nails OR (4) #9 x 2-1/2″ SD Connector Screws |
| For Treated Lumber | Yes |
| Height | 7″ |
| Joist size | Double 2″ X 8″ |
| Thickness | 18 Gauge |
| Width | 3-1/8″ |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
