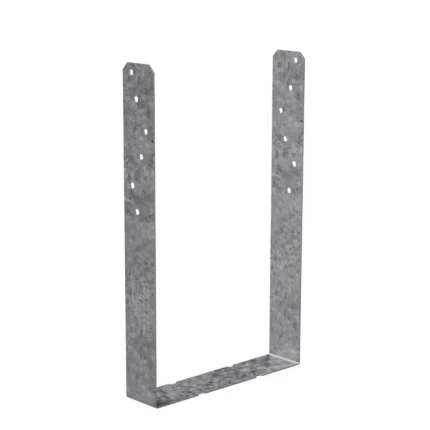

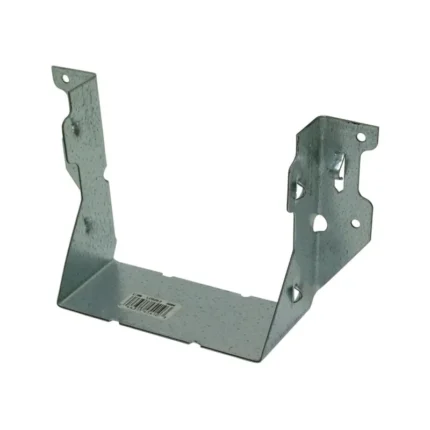

Simpson Strong-Tie LUC210Z (2″ x 10″) Concealed Face Mount Joist Hanger
Simpson Strong-Tie LUC210Z Description
The Simpson Strong-Tie LUC210Z is a concealed face mount joist hanger designed for 2×10 joists, featuring a ZMAX finish for enhanced corrosion resistance.
Simpson Strong-Tie LUC210Z Includes
- (1) Concealed Face Mount Joist Hanger for 2×10
Simpson Strong-Tie LUC210Z Features
- ZMAX Coating for Extra Protection: Thicker galvanization provides enhanced corrosion resistance, ideal for exterior and pressure-treated lumber applications.
- Concealed Flange Design: Offers a cleaner look and allows for installation in tighter spaces.
- Strong Face-Mount Connection: Ensures a secure hold for wood-to-wood framing projects.
- Durable Steel Construction: Engineered for strength and long-lasting performance.
- Versatile Compatibility: Supports various framing configurations, including decks, pergolas, and outdoor structures.
Simpson Strong-Tie LUC210Z Applications
- Deck Construction: Provides a strong, corrosion-resistant connection for deck joists.
- Pergolas & Outdoor Structures: Maintains durability in exposed environments.
- Treated Lumber Framing: Protects against corrosion when used with ACQ, CA, and other pressure-treated woods.
- Fences & Gate Framing: Ensures structural integrity in outdoor applications.

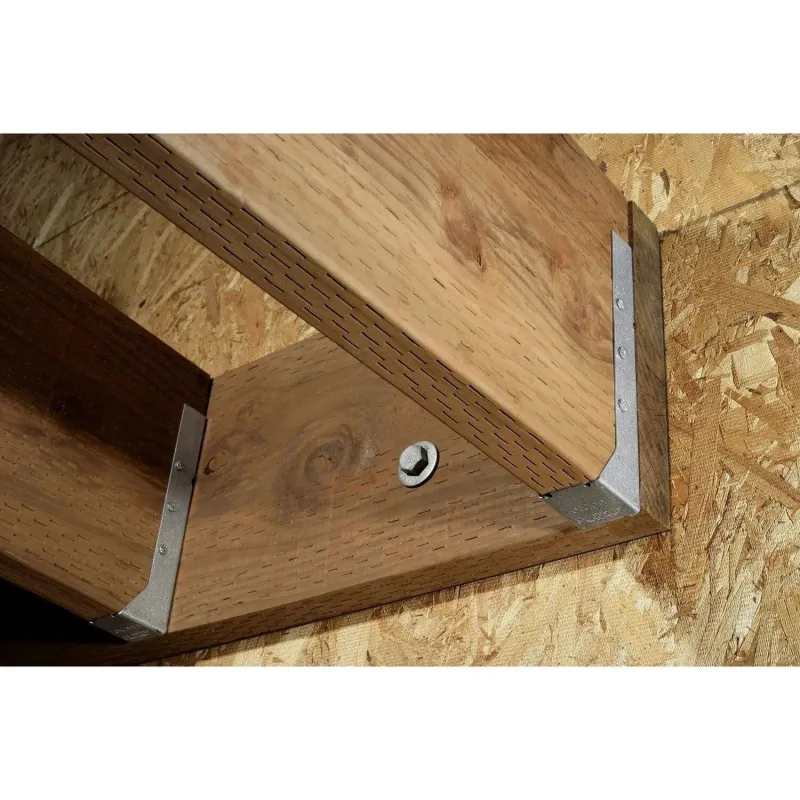

Simpson Strong-Tie LUC210Z Installation Overview
- Use hot-dip galvanized nails or Simpson SD Connector Screws to maintain corrosion resistance.
- Ensure the joist hanger is installed flush against the header for maximum load transfer.
- Securely fasten into all pre-punched holes for full strength and structural integrity.
- Specifically designed for pressure-treated wood, exterior framing, and high-humidity environments.
Simpson Strong-Tie LUC210Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Header – (10) 0.162″ x 3-1/2″ Nails, Joist – (6) 0.148″ x 1-1/2″ Nails |
| For Treated Lumber | Yes |
| Height | 7-3/4″ |
| Joist size | 2″ X 10″ |
| Thickness | 22 Gauge |
| Width | 1-9/16″ |
