Simpson Strong-Tie LRU28Z (6-15/16″) 18 Gauge Slopeable Face-Mount Light Rafter U Hanger for 2×8
Simpson LRU28Z Description

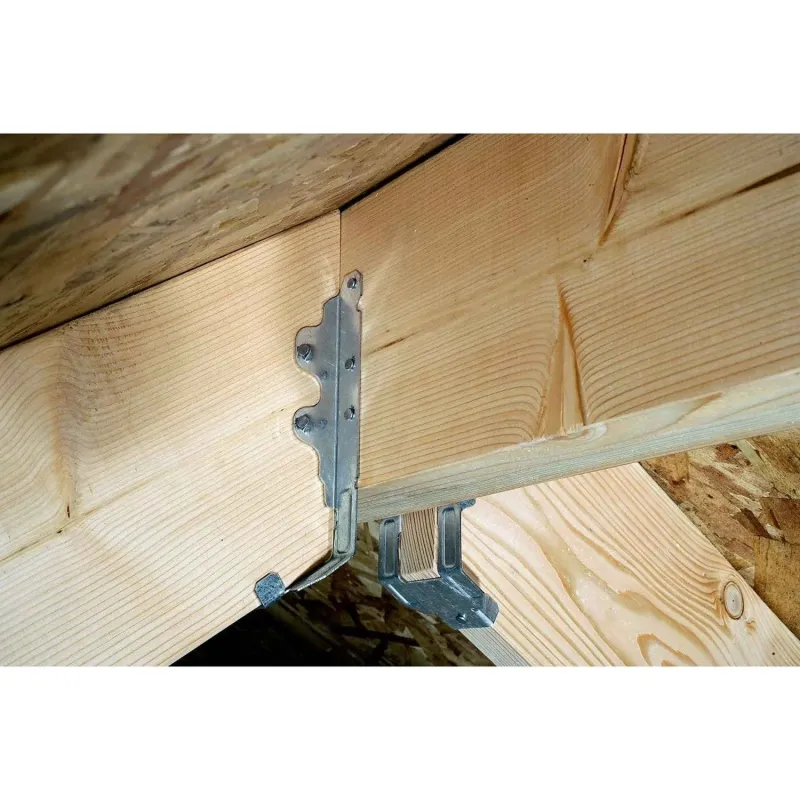

The Simpson LRU28Z Light Rafter U Hanger is designed for slopeable 2×8 connections, featuring a ZMAX finish for corrosion resistance and a low-profile design for ease of installation.
Simpson LRU28Z Includes
- (1) Slopeable Light Rafter U Hanger for 2×8
Simpson LRU28Z Features
- Low-Profile Design: Accommodates sheathing while maintaining full rafter bearing.
- Face-Mount Installation: Securely attaches to the supporting member for enhanced stability.
- Versatile Application: Ideal for traditional rafter-to-beam connections and angled installations.
- Durable Construction: Made from high-strength steel with ZMAX corrosion-resistant coating for long-term reliability.
- Code Compliant: Engineered to meet building code requirements for structural performance.
Simpson LRU28Z Applications
- Residential & Commercial Roofing: Securely connects rafters to beams in traditional wood-framed roofing systems.
- Pergolas & Outdoor Structures: Provides a strong, concealed connection for aesthetic and structural integrity.
- Porches & Patio Covers: Ensures reliable rafter attachment in open-air structures.
Simpson LRU28Z Installation Overview
- Designed for face-mount attachment to the beam or supporting member.
- Install using Simpson Strong-Tie Strong-Drive SD screws or nails as per manufacturer recommendations.
- Ensure fasteners are driven fully for optimal load transfer and connection security.
- Can be used for common, jack, and hip rafters, with options for different angles of installation.
Simpson LRU28Z Specifications
| Finish | ZMAX |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | Yes |
| Height | 6-15/16″ |
| Joist size | 2″ X 8″ |
| Thickness | 18 Gauge |
| Width | 1-9/16″ |
NOTE: Ensure fasteners are driven fully for optimal load transfer and connection security.
