Simpson Strong-Tie L30 (3″) Reinforcing L Angle, 16-Gauge Galvanized
Simpson Strong-Tie L30 Description
The Simpson Strong-Tie L30 Reinforcing Angle features a G90 galvanized finish and is designed for wood-to-wood applications, offering durability and ease of installation.
Simpson Strong-Tie L30 Includes
- (1) Reinforcing L Angle
Simpson Strong-Tie L30 Features
- Staggered nail pattern reduces the possibility for splitting
- Available in multiple sizes to ensure proper selection for the specific use
- Load rated for wood and cold-formed steel applications
Simpson Strong-Tie L30 Applications
- Fastening wood-to-wood connections
- Reinforcing structural angles in construction

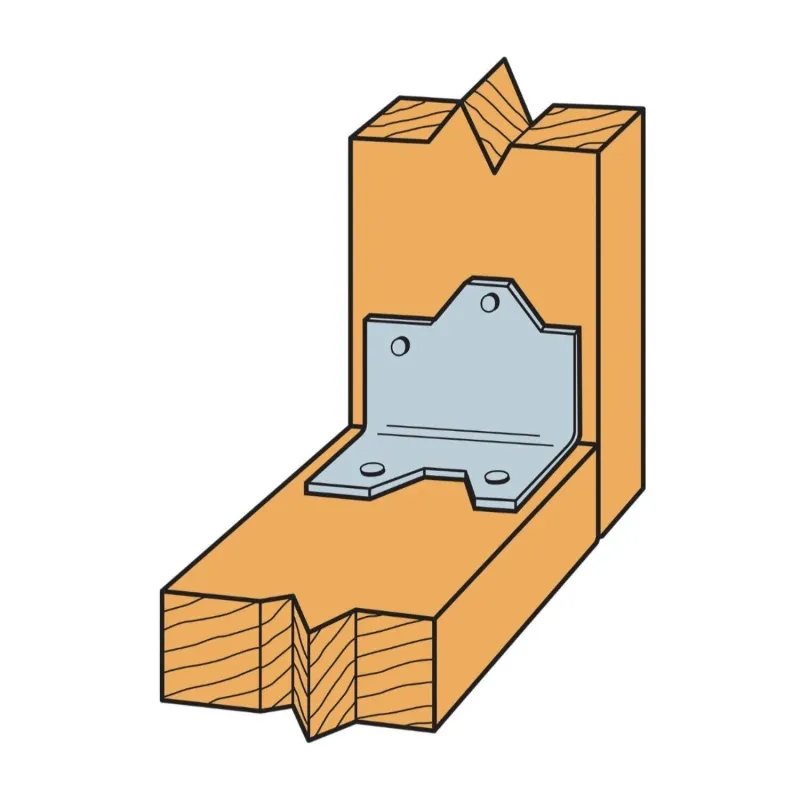

Simpson Strong-Tie L30 Installation Overview
- Use all specified fasteners
- Nail the L angle’s wider leg into the joist to ensure table loads and allow correct nailing
Simpson Strong-Tie L30 Specifications
| Material | 54 mil (16 ga.) |
| Finish | G90 Galvanized |
| Length | 3″ |
| Fasteners required | (4) 0.148″ x 1-1/2″ Nails |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
