Simpson Strong-Tie HWSC6-KT (5-3/4″) Head-of-Wall Slide-Clip Connector with Screws (50 Pack)
Simpson Strong-Tie HWSC6-KT Description
The HWSC head-of-wall slide-clip connector is designed for simplifying the panelization of 6″ printed studs and replaces slotted track with a typical printed track, ensuring peak performance and strength.
Simpson Strong-Tie HWSC6-KT Includes
- (50) HWSC6 connectors
- (110) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie HWSC6-KT Features
- Edge stiffener rolled into the web and flange for added strength
- Unique cone-shaped dimple for alignment and secure connection
- Replaces slotted track for easier panelization
- Allows up to 1″ movement up and down
Simpson Strong-Tie HWSC6-KT Applications
- Curtain-Wall Construction: Ideal for head-of-wall situations with printed studs

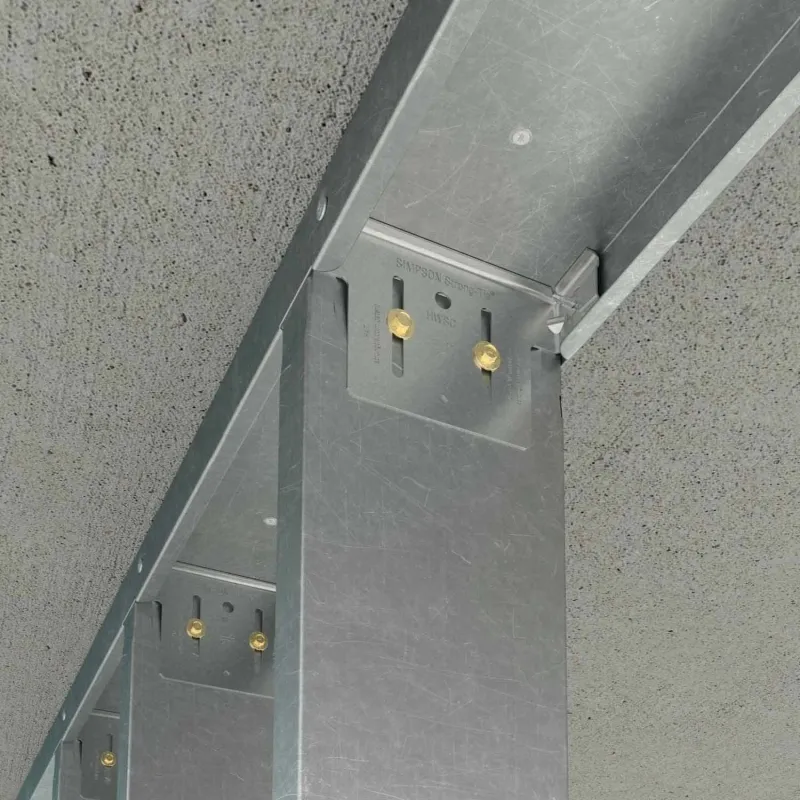

Simpson Strong-Tie HWSC6-KT Installation Overview
- Install with (1) #10-16 screw into each track flange to each flange of clip.
- Use (2) XLSH78B1414 #14 shoulder screws (included). Install screws into the center of the slot at No-Equal logo.
- Use an optional #10 screw to lock deflection gap during panel construction. Remove after installation is complete.
Simpson Strong-Tie HWSC6-KT Specifications
| Material | 54 mil (16 ga.), 50 ksi |
| Finish | Galvanized (G90) |
| Height | 3-3/4″ |
| Width | 5-3/4″ |
| Fasteners required | XLSH34B1414 #14 Shouldered Screw (included) |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
