Simpson Strong-Tie HWDC5.25-KT25 (5-1/4″) Head-of-Wall Drift-Clip Connector for Lateral and Vertical Deflection (25 Pack)
Simpson Strong-Tie HWDC5.25-KT25 Description

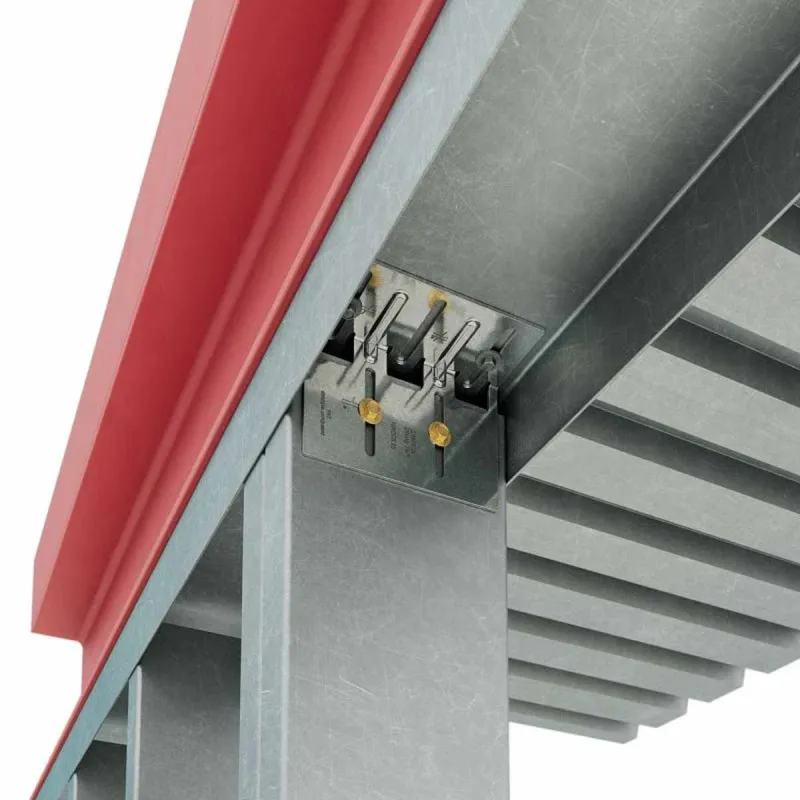

The Simpson Strong-Tie HWDC5.25-KT25 head-of-wall drift-clip connector is designed to secure walls to slabs or beams, allowing for lateral and vertical movement during seismic and high-wind events.
Simpson Strong-Tie HWDC5.25-KT25 Includes
- (25) connectors
- (55) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie HWDC5.25-KT25 Features
- Accommodates 1″ of lateral drift in each direction, and 1″ of upward and downward vertical deflection
- Unique design and placement of the anchorage slots allows for closer attachment of anchorage to the clip bend, providing increased load capacity
- Stiffening ribs are placed in between anchorage slots through the bend to provide additional strength and stiffness
- Simpson Strong-Tie No-Equal stamps mark the center of the slots to help ensure proper shouldered screw and anchor placement
Simpson Strong-Tie HWDC5.25-KT25 Applications
- Curtain-Wall Construction
- Adding strength to window or door jambs at head-of-wall connections

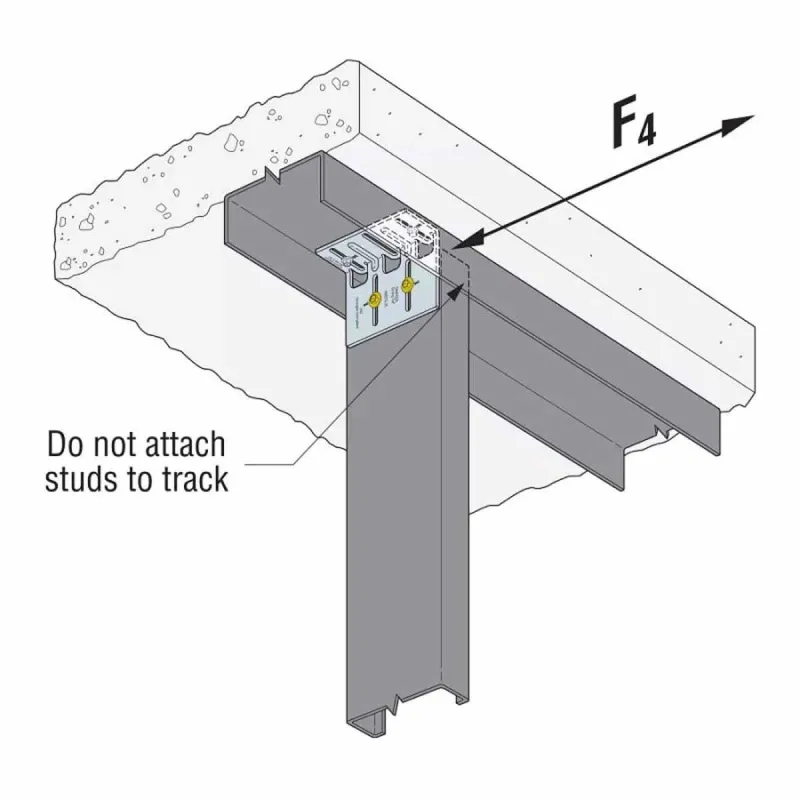

Simpson Strong-Tie HWDC5.25-KT25 Installation Overview
- Use the specified type and number of fasteners and anchors.
- In the vertical slots, use the specified number of #14 shoulder screws for attachment to the stud.
- For attachment to steel, use Simpson Strong-Tie Strong Drive XL Large-Head Metal Screws.
- For attachment to concrete, use a Titen Turbo screw anchor.
Simpson Strong-Tie HWDC5.25-KT25 Specifications
| Material | 97 mil (12 ga.), 50 ksi |
| Finish | Galvanized (G90) |
| Width | 5-1/4″ |
| Weight | 19.0 lb |
