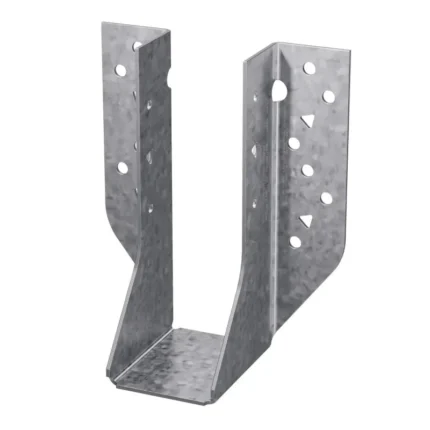

Simpson Strong-Tie HUC48 (4″ x 8″) 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
Simpson HUC48 Description
The Simpson HUC48 Galvanized Face-Mount Concealed-Flange Joist Hanger is designed for securely attaching joists to beams or ledgers, providing strength and durability.
Simpson HUC48 Includes
- (1) Galvanized Face-Mount Concealed-Flange Joist Hanger for 4×8
Simpson HUC48 Features
- Concealed Flange Design for seamless aesthetic
- Heavy-Duty Construction with 12-gauge steel
- G90 Galvanized Finish for corrosion resistance
Simpson HUC48 Applications
- Residential and Commercial Use: Suitable for structural projects including floors, ceilings, and roofs.
- End-of-Wall Installations: Designed for joists terminating at the end of a wall.
- Corner Joist Connections: Ensures structural stability in corner placements.
Simpson HUC48 Installation Overview
- Use all specified fasteners according to manufacturer guidelines.
- Minimum recommended header or ledger size is 3 1/2 inches.
- These hangers cannot be modified for sloped or skewed seat applications.
Simpson HUC48 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face – (12) 0.162″ x 3-1/2″ Nails, Joist – (4) 0.148″ x 3″ Nails |
| For Treated Lumber | No |
| Height | 7-1/8″ |
| Joist size | 4″ X 8″ |
| Thickness | 12 Gauge |
| Width | 3-9/16″ |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
