Simpson Strong-Tie HUC28-2Z (Double 2″ x 8″) Face-Mount Concealed-Flange Joist Hanger
Simpson HUC28-2Z Description

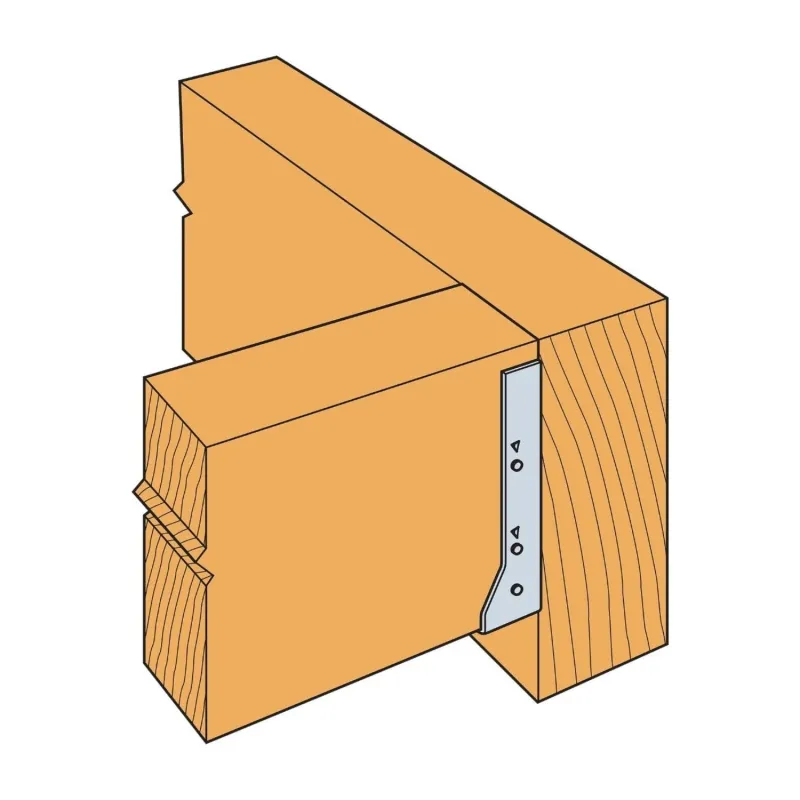

The Simpson HUC28-2Z is a concealed flange joist hanger designed for double 2×8 joists, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson HUC28-2Z Includes
- (1) Face-Mount Concealed-Flange Joist Hanger for Double 2×8
Simpson HUC28-2Z Features
- Concealed flange design for a clean appearance
- ZMAX galvanized finish for corrosion resistance
- Compatible with double 2×8 joists
- Heavy-duty construction for structural integrity
- Designed for schools and structures requiring additional strength
Simpson HUC28-2Z Applications
- Structural framing requiring concealed flange hangers
- Double 2×8 joist connections in wood construction
- Projects demanding enhanced corrosion resistance
Simpson HUC28-2Z Installation Overview
- Use all specified fasteners
- Can be installed filling round holes only, or filling round and triangle holes for maximum values
- Joists sloped up to 1/4:12 achieve load tables

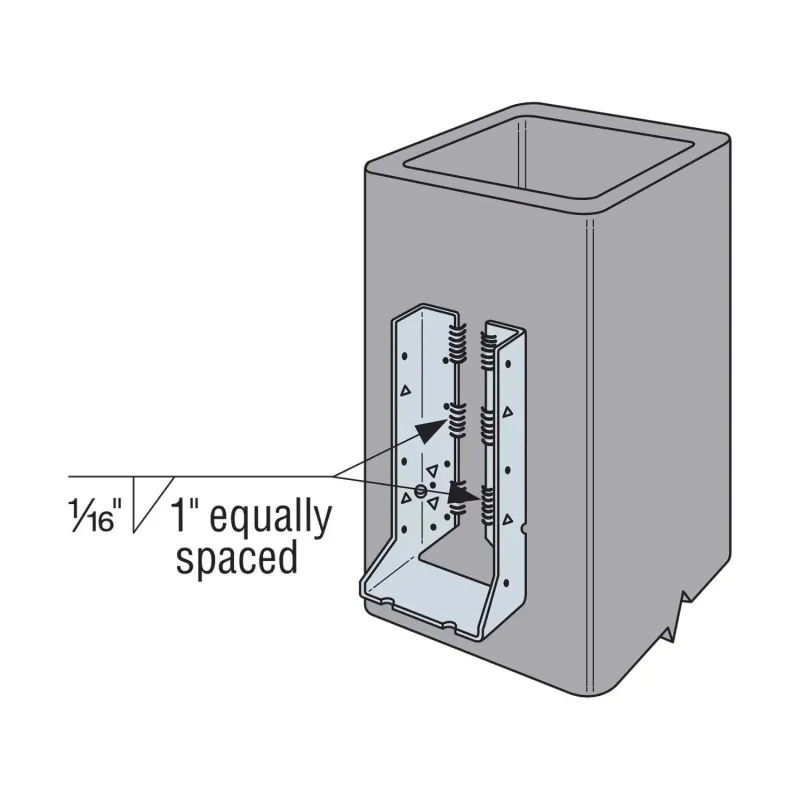

- Can be welded to steel members; refer to technical bulletin T-HUHUC-W for details
Simpson HUC28-2Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |

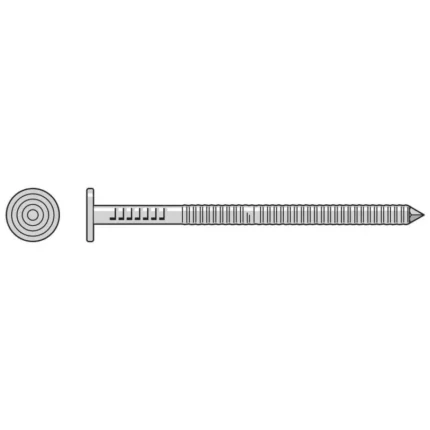

| Fasteners required | Face – (14) 0.162″ x 3-1/2″ Nails, Joist – (6) 0.148″ x 3″ Nails |
| For Treated Lumber | Yes |
| Height | 6-5/16″ |
| Joist size | Double 2″ X 8″ |
| Thickness | 14 Gauge |
| Width | 3-1/8″ |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
