Simpson Strong-Tie HSKP5.75X19.5-W (5-3/4″ x 19-1/2″) Heavy Seated Knife Plate Hanger for Glulam and CLT Connections
Simpson Strong-Tie HSKP5.75X19.5-W Description
The Simpson Strong-Tie HSKP5.75X19.5-W is a high-performance concealed connector system designed for glulam beams and CLT panel connections, offering exceptional strength and a clean architectural finish.
Simpson Strong-Tie HSKP5.75X19.5-W Includes
- (1) Pre-cut HSKP5.75X19.5 hidden steel key plate
- (1) CJTPL 1/2″ Dia. Steel Dowel
- (2) SDCF27614 0.390″ x 6-1/4″ Strong-Drive SDCF Timber-CF Screws
- (4) SDCF22858 0.315″ x 8-5/8″ Strong-Drive SDCF Timber-CF Screws
Simpson Strong-Tie HSKP5.75X19.5-W Features
- Concealed design for exposed applications with architectural requirements
- High load capacity for gravity, uplift, and lateral loads
- Precision pre-cut plate for fast and easy installation
- ICC-ES listed for structural applications (ESR-4379)
- Full kit included with all fasteners and dust caps
- Optimized for mass timber, specifically for glulam and CLT assemblies
Simpson Strong-Tie HSKP5.75X19.5-W Applications
- Glulam-to-glulam beam connections
- CLT-to-steel or wood supports
- Hidden architectural beam-to-beam joints
- Commercial and residential timber framing projects

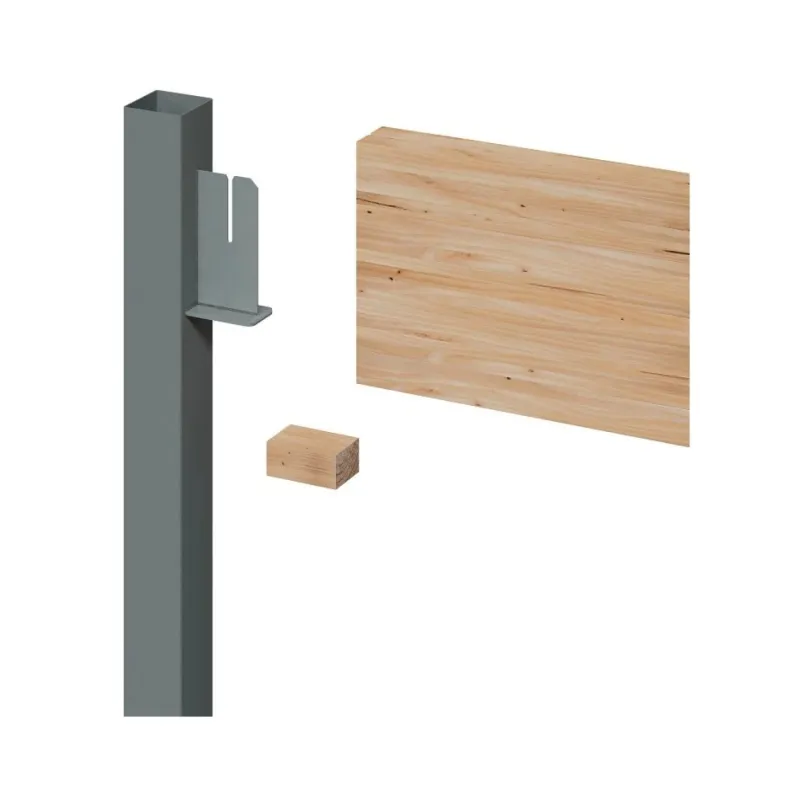

Simpson Strong-Tie HSKP5.75X19.5-W Installation Overview
- Cut a recessed pocket into the wood member to house the steel key plate
- Install the HSKP plate using the provided screws, following the installation sequence
- Cover the outer face with the included dust caps for a flush, aesthetic finish
Simpson Strong-Tie HSKP5.75X19.5-W Specifications
| Finish | Gray Paint |
| Material | Painted Steel |
| Additional Info | Back and Knife Plate — 3/8″ gauge; Bearing Plate — 1/2″ |
