Simpson Strong-Tie HHRC64 Hip-Ridge Face-Mount Connector for Solid Sawn Lumber, G90 Galvanized
Simpson Strong-Tie HHRC64 Description
The Simpson Strong-Tie HHRC Hip-Ridge Face-Mount Connector is engineered to create secure connections between hip rafters and ridge beams in solid sawn lumber applications.
Simpson Strong-Tie HHRC64 Includes
- (1) Hip-Ridge Face-Mount Connector
Simpson Strong-Tie HHRC64 Features
- G90 Galvanized Finish: Protects against general atmospheric corrosion in interior and dry environments.
- Heavy-Gauge Steel Construction: Ensures high load capacity and structural durability.
- Face-Mount Design: Provides easy and secure installation for accurate framing.
- Pre-Punched Fastener Holes: Optimized for nails or Simpson Strong-Drive SD screws to enhance performance.
- Versatile Application: Ideal for hip, valley, and ridge beam connections.
Simpson Strong-Tie HHRC64 Applications

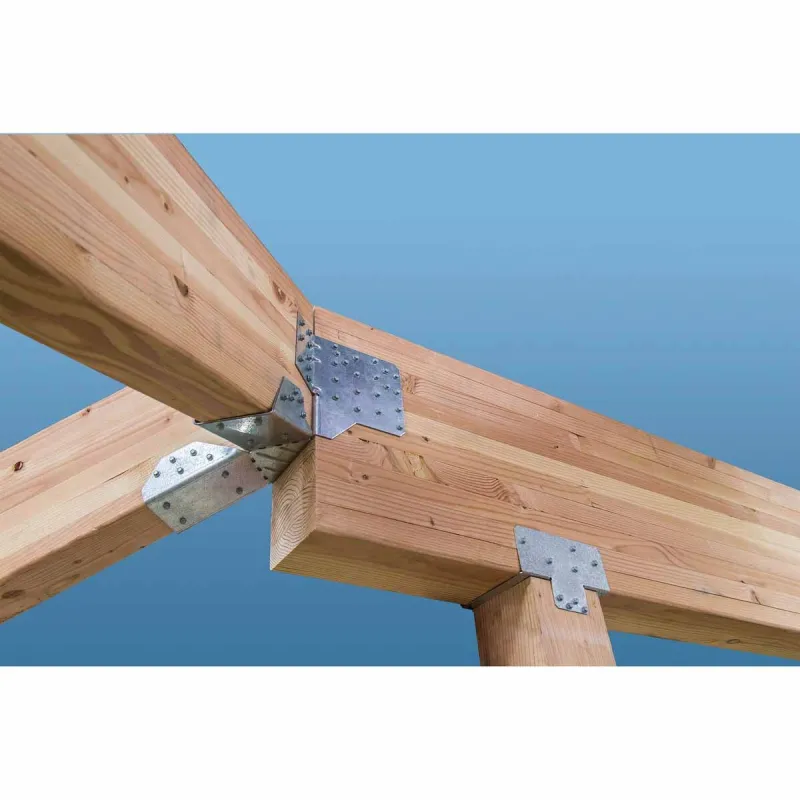

- Hip Beam Connections: Provides secure attachment between hip rafters and ridge beams for strong, stable roof framing.
- Valley Beam Support: Reinforces valley beam intersections to handle structural loads effectively.
- Timber Framing: Designed for large wood members in traditional and engineered wood construction.
Simpson Strong-Tie HHRC64 Installation Overview
- Use only Simpson Strong-Tie approved fasteners to ensure maximum strength and load capacity.
- Install with nails or Strong-Drive SD screws per manufacturer guidelines.
- Ensure proper alignment of the connector before securing fasteners to avoid misalignment of structural components.
- Do not modify or alter the connector—use in its intended orientation for optimal performance.
Simpson Strong-Tie HHRC64 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Thickness | 12 Gauge |
| Width | 5-5/8″ |
NOTE: Ensure proper alignment of the connector before securing fasteners to avoid misalignment of structural components.
