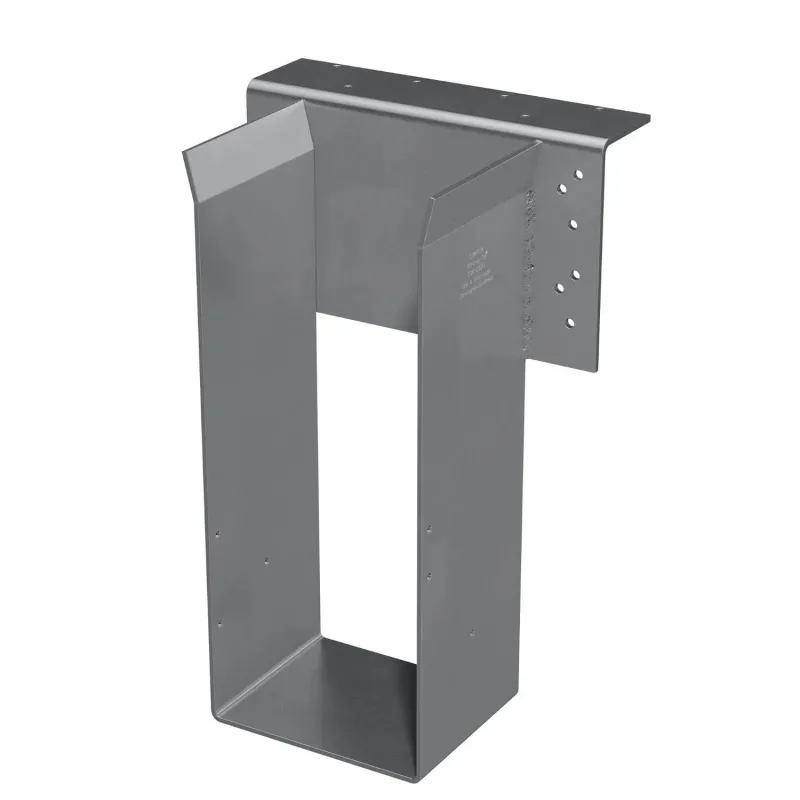

Simpson Strong-Tie HGLTV416-2 (3-1/2″ x 12″) Heavy Duty Top Flange I-Joist Hanger for Engineered Wood, Gray Paint
Simpson Strong-Tie HGLTV416-2 Description
The Simpson Strong-Tie HGLTV Top-Flange Hanger is a high-capacity solution for connecting engineered wood members to supporting beams. Designed for solid sawn lumber and structural composite lumber (SCL), it ensures exceptional strength and stiffness.
Simpson Strong-Tie HGLTV416-2 Includes
- (1) Heavy Duty Top Flange I-Joist Hanger
Simpson Strong-Tie HGLTV416-2 Features
- High Load Capacity: Engineered to support heavy structural loads in demanding applications.
- Engineered Lumber Compatibility: Ideal for use with LVL, PSL, LSL, and other SCL materials.
- Strong, Secure Fit: Reduces joist rotation for enhanced structural integrity.
- Top-Flange Mounting: Designed for installation on supporting beams and ledgers.
- Code Compliant: Meets industry performance standards for structural connectors.
Simpson Strong-Tie HGLTV416-2 Applications
- Floor Joists: Provides stable, load-bearing support for SCL joists in residential and commercial flooring systems.
- Deck Framing: Reinforces beam-to-joist connections for heavy-duty decks with engineered lumber.
- Multi-Ply Beams: Connects SCL or LVL headers and girders in beam construction.
- Commercial Wood Construction: Supports large spans and engineered wood framing in commercial projects.

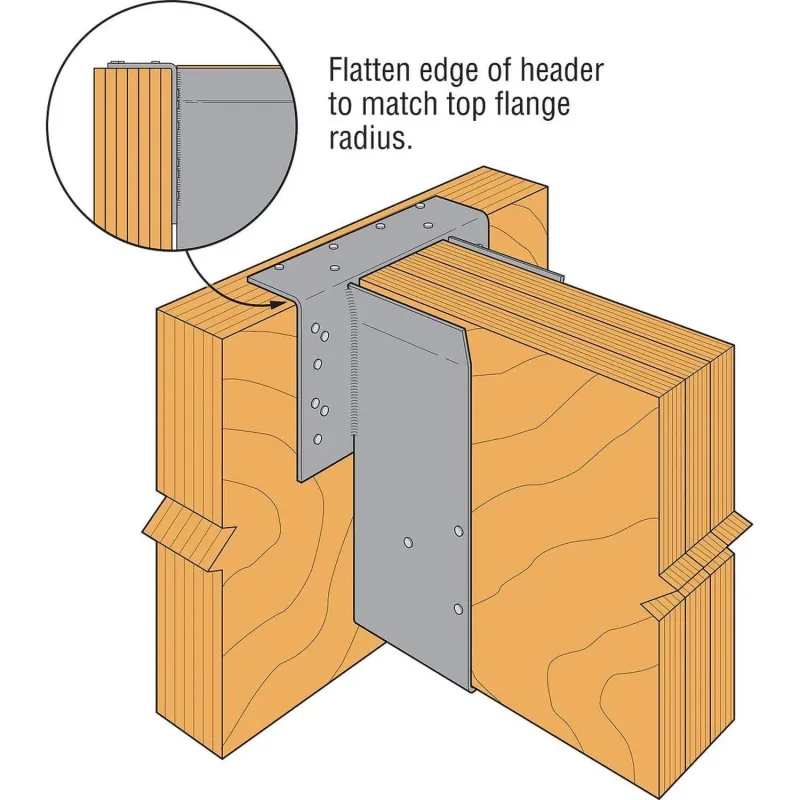

Simpson Strong-Tie HGLTV416-2 Installation Overview
- Use Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws or nails as specified.
- Install fasteners into all designated holes for full load capacity.
- Ensure installations meet applicable building codes and engineered plans.
- Install hanger flush with the header for proper bearing and alignment.
- Not suitable for skewed or sloped applications.
Simpson Strong-Tie HGLTV416-2 Specifications
| Finish | Gray Paint |
| Fasteners required | Top – (6) 0.162″ x 3-1/2″ Nails; Face – (12) 0.162″ x 3-1/2″ Nails; Joist – (6) 0.162″ x 3-1/2″ Nails |
| For Treated Lumber | No |
| Height | 16″ |
| Joist size | 7″ X 16″ |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | Top Flange: 3 Gauge; Stirrup: 7 Gauge |
| Width | 7.125″ |
