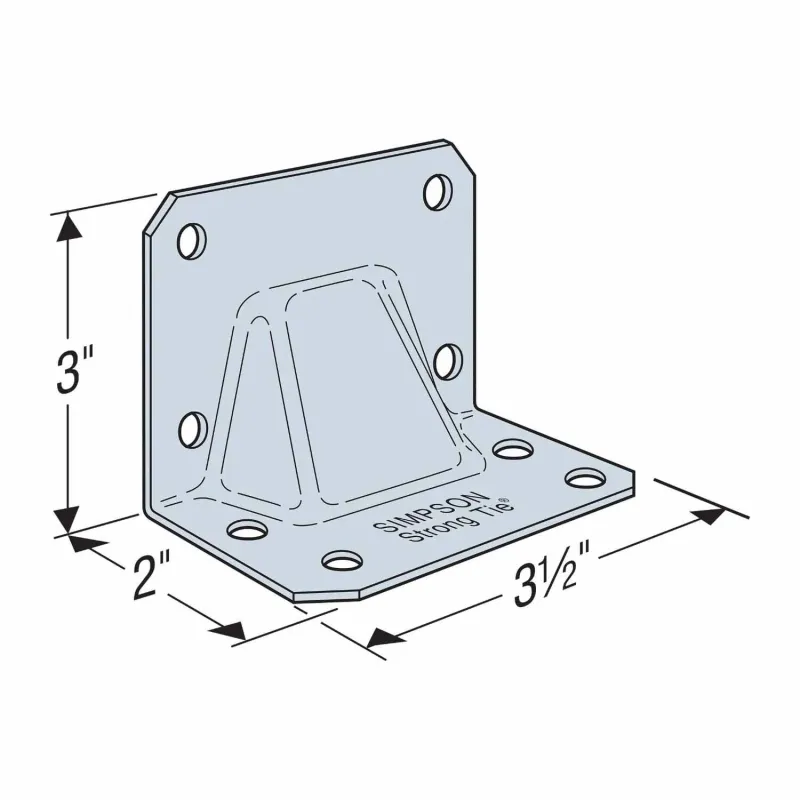

Simpson Strong-Tie HGAM10KTA (10″) Hurricane Gusset Angle for Masonry with Screws (10 Pack)
Simpson HGAM10KTA Description
The HGAM10KTA Hurricane Gusset Angle kit is designed for attaching gable trusses to masonry, providing enhanced lateral wind resistance. Includes all necessary screws for installation.

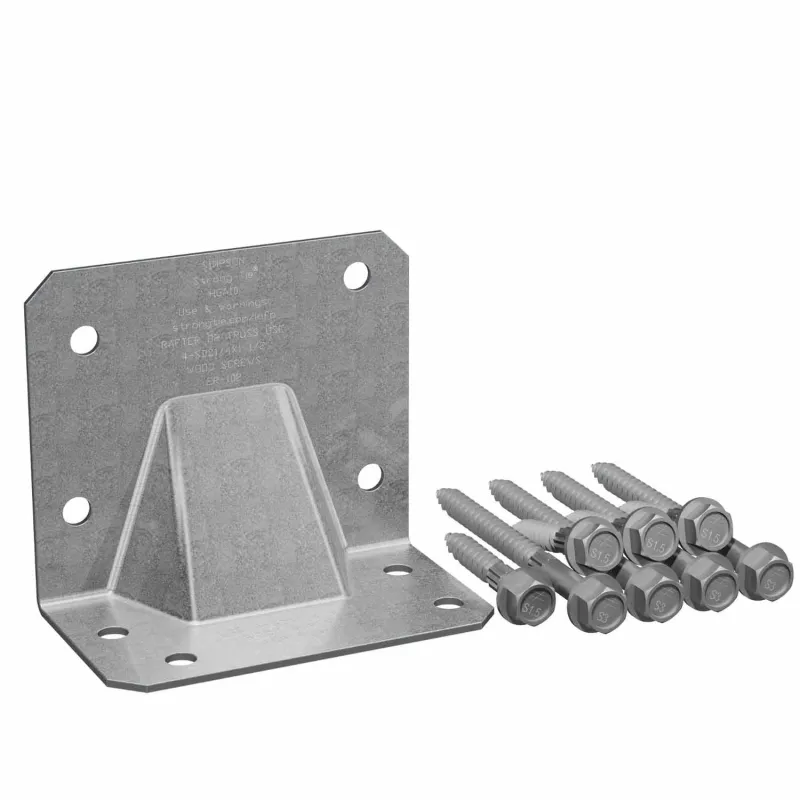

Simpson HGAM10KTA Includes
- (10) HGAM10 connectors

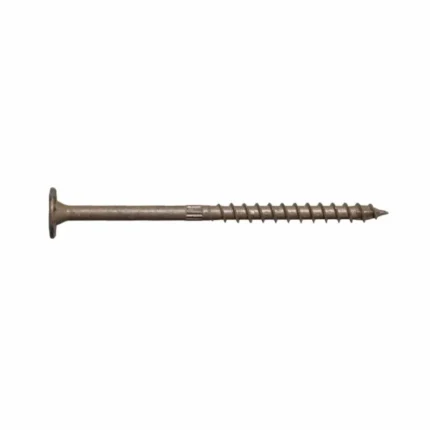

- (40) 1/4 in. x 1-1/2 in. Strong-Drive SDS screws
- (40) 1/4 in. x 2-3/4 in. Titen Turbo screws
Simpson HGAM10KTA Features
- Engineered for increased loads in high-wind or seismic events
- Includes Strong-Drive SDS and Titen Turbo screws
- G90 Galvanized finish for corrosion resistance
- Not designed for use with treated lumber
Simpson HGAM10KTA Applications
- Attaching gable trusses to masonry
- Providing lateral wind resistance in construction
- Securing wood-to-concrete or masonry connections
Simpson HGAM10KTA Installation Overview
- Use all specified fasteners as per guidelines
- Attach connectors using hex-head Titen Turbo screws
- Ensure screws are not exposed to the exterior environment
- Attach to grout-filled CMU with a minimum one #5 rebar horizontal in the course
- Hurricane ties do not replace solid blocking
Simpson HGAM10KTA Specifications
| Material | 14 ga. |
| Finish | G90 Galvanized |
| Weight | 5.0 lb |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
