Simpson Strong-Tie HF24NZ (2″ x 4″) Panelized Construction Hanger ZMAX Finish
Simpson Strong-Tie HF24NZ Description
The Simpson Strong-Tie HF24NZ Panelized Construction Hanger is designed for strength and corrosion resistance in wood-frame construction.
Simpson Strong-Tie HF24NZ Includes
- (1) 2×4 Panelized Construction Hanger
Simpson Strong-Tie HF24NZ Features
- ZMAX Galvanized Coating for enhanced corrosion resistance
- High-strength performance for heavy loads
- Efficient installation with no field modifications
- Versatile compatibility with various wood types
- Reliable structural connection for stability
Simpson Strong-Tie HF24NZ Applications
- Panelized roof systems for strong purlin-to-girder connections
- Solid sawn lumber installations for reinforced wood framing
- Glulam beam construction for handling higher loads
Simpson Strong-Tie HF24NZ Installation Overview

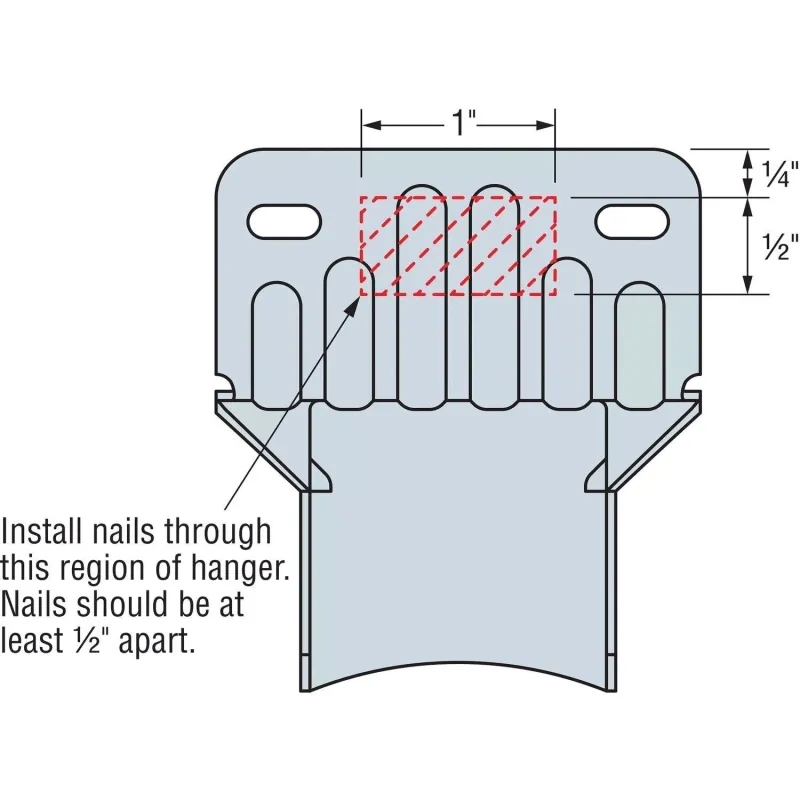

- Install using manufacturer-specified nails or screws
- Ensure all connection points are clean and aligned
- Secure the hanger to the supporting beam first
- Install the purlin or joist after securing the hanger
- Avoid field modifications for optimal performance
Simpson Strong-Tie HF24NZ Specifications
| Finish | ZMAX |
| Fasteners required | (2) 0.148″ x 2-1/8″ |
| For Treated Lumber | Yes |
| Height | 3-3/8″ |
| Joist size | 2″ X 4″ |
| Thickness | 18 Gauge |
| Width | 1-9/16″ |
NOTE: Ensure all connection points are clean, properly aligned, and free of debris before installation.
