Simpson Strong-Tie HD5B (9-3/8″) Bolted Holdown – G90 Galvanized
Simpson HD5B Description
The HD5B Bolted Holdown by Simpson Strong-Tie offers low-deflection performance for intermediate-load-range shearwalls, braced-wall panels, and lateral applications.
Simpson HD5B Includes
- (1) Bolted Holdown G90 Galvanized
Simpson HD5B Features
- Low-deflection performance for a range of load requirements
- Tested in accordance with ICC-ES’s AC 155 acceptance criteria
- Unique seat design minimizes deflection under load
- Self-jigging design ensures code-required minimum bolt distances
- Suitable for vertical and horizontal applications

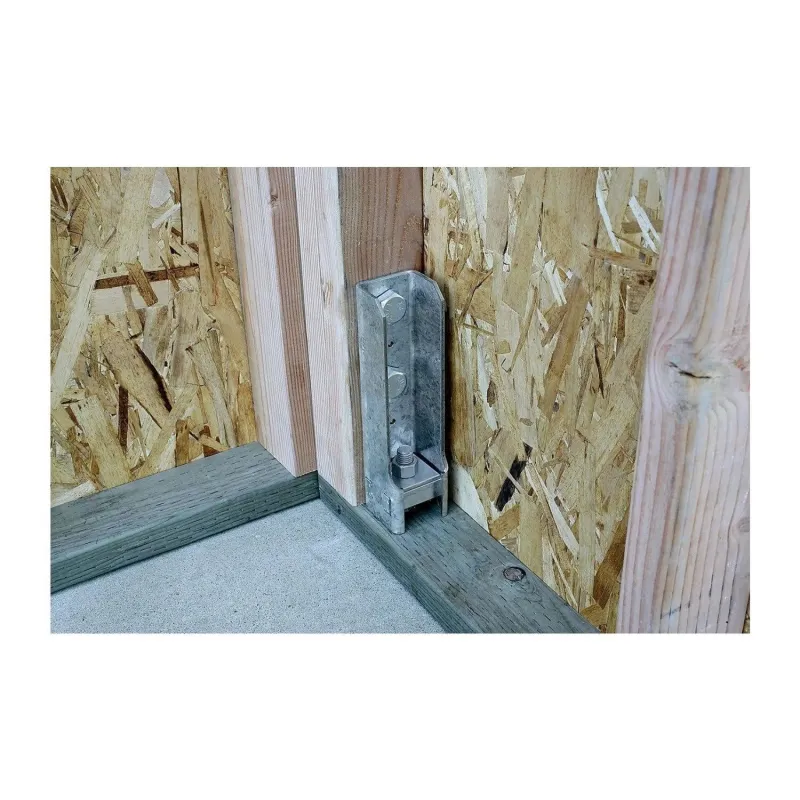

- Can be installed directly on the sill plate or raised above it
- Designed for intermediate-load-range shearwalls and lateral applications
Simpson HD5B Applications
- Intermediate-load-range shearwalls
- Braced-wall panels
- Lateral applications
- Vertical and horizontal structural support

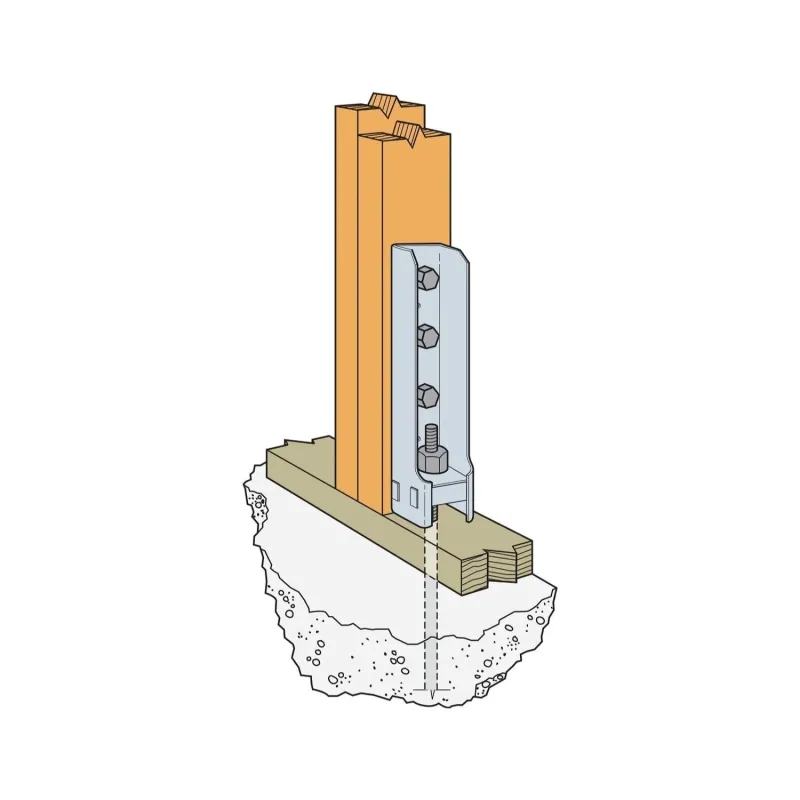

Simpson HD5B Installation Overview
- Use all specified fasteners
- Ensure bolt holes are within specified size range
- Tighten stud bolts snugly with standard cut washers
- Install flush with the sill plate for minimum bolt end distance
- Use standard cut washer under anchor nut for specified anchors
Simpson HD5B Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 9-3/8″ |
| Fasteners required | (2) 3/4″ Machine Bolts, (1) 5/8″ Concrete Anchor |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
