Simpson Strong-Tie H10A-2Z (18-Gauge) Hurricane Tie – ZMAX Finish
Simpson Strong-Tie H10A-2Z Description

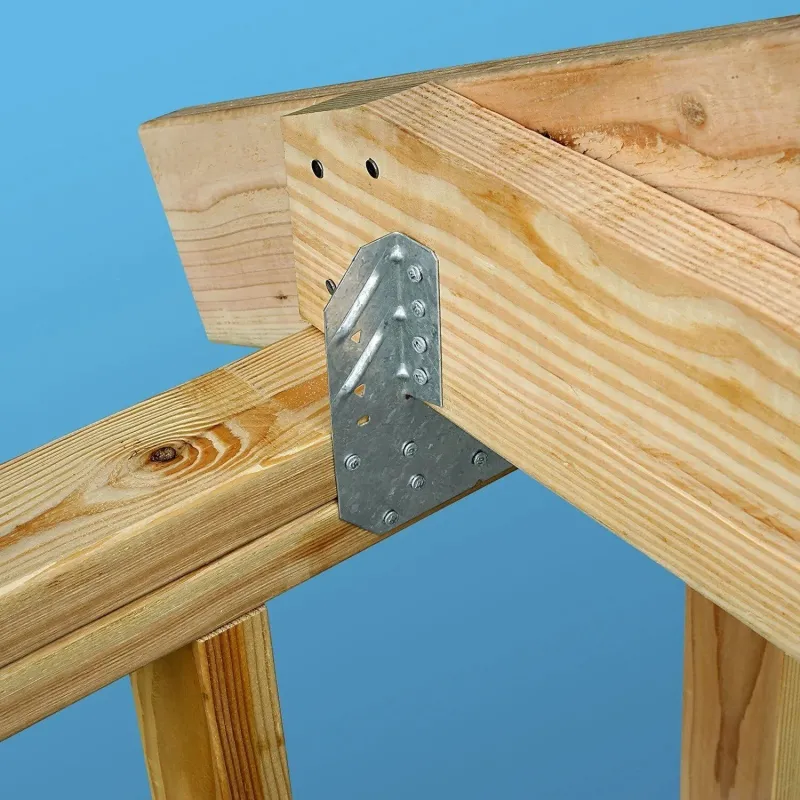

The Simpson Strong-Tie H10A-2Z Hurricane Tie provides a secure connection between truss/rafter and the wall, designed to resist wind and seismic forces.
Simpson Strong-Tie H10A-2Z Includes
- (1) Hurricane Tie ZMAX Finish
Simpson Strong-Tie H10A-2Z Features
- ZMAX finish for enhanced corrosion resistance
- Designed for wind and seismic force resistance
- Requires hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson Strong-Tie H10A-2Z Applications
- Securing truss/rafter to wall structures
- Resisting wind and seismic forces in construction
Simpson Strong-Tie H10A-2Z Installation Overview
- Use all specified fasteners
- Utilize hot-dip galvanized nails with ZMAX and HDG connector products
- Do not replace solid blocking with hurricane ties
- Avoid fastening through the truss plate from behind when installing ties on plated trusses
Simpson Strong-Tie H10A-2Z Specifications
| Finish | ZMAX |
| Fasteners required | To Rafters/Truss – (9) 0.148″ x 1-1/2″ Nails, Top Plates – (9) 0.148″ x 1-1/2″ Nails |
| For Treated Lumber | Yes |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
