Simpson Strong-Tie ECCQ94SDS2.5 (8″ Beam, 4x Post) Quick Install End Column Cap with Screws
Simpson Strong-Tie ECCQ94SDS2.5 Description

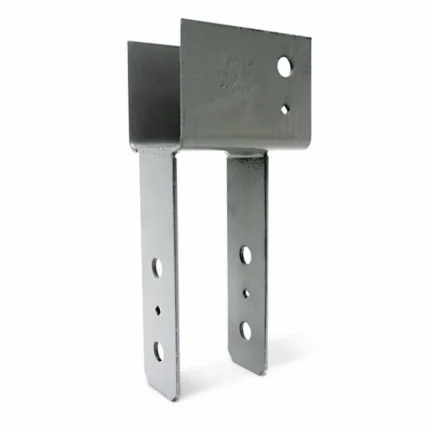

The Simpson ECCQ94SDS2.5 End Column Cap with SDS Screws provides a strong and stable connection for 9x beams to 4x posts, featuring durable steel construction and a gray paint finish.
Simpson Strong-Tie ECCQ94SDS2.5 Includes
- (1) End Column Cap
- (14) SDS Screws
Simpson Strong-Tie ECCQ94SDS2.5 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from durable steel with a gray paint finish
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Diamond holes for temporary fastening during installation
Simpson Strong-Tie ECCQ94SDS2.5 Applications
- Wood construction projects requiring column-to-beam connections
- End-of-beam applications for 9x beams and 4x posts

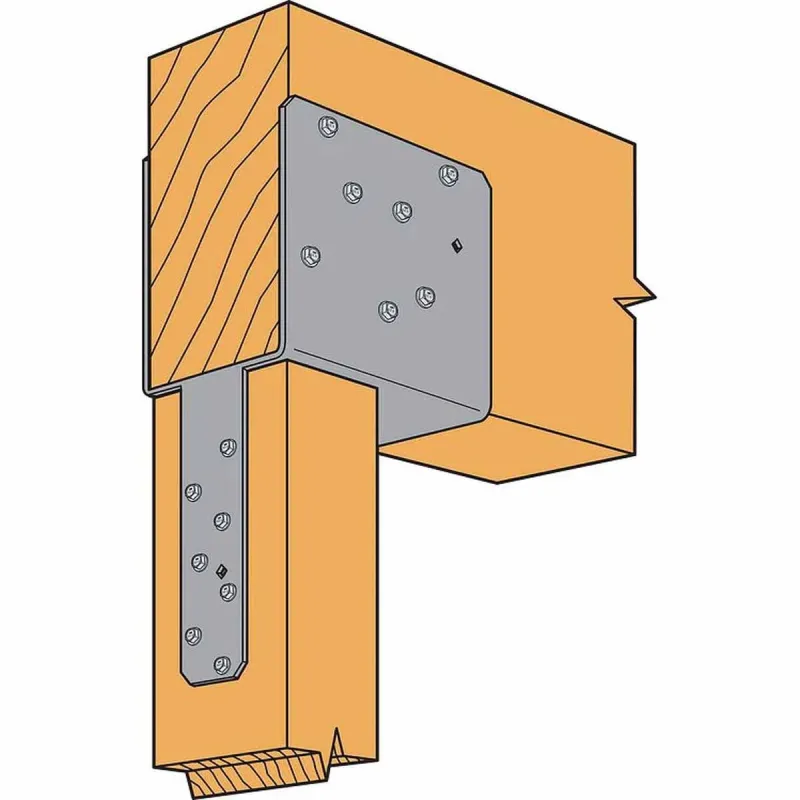

Simpson Strong-Tie ECCQ94SDS2.5 Installation Overview
- Fasten with 1/4″ x 2 1/2″ Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap
- Ensure proper alignment and secure fastening to meet load requirements
Simpson Strong-Tie ECCQ94SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 9x |
| Post size | 4x |
| Thickness | 3 Gauge |

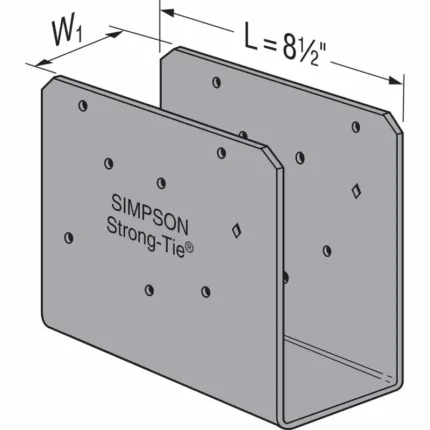

| Width | W1: 8-7/8″, W2: 3-5/8″ |
| Height | 7″ |
| Length | 8-1/2″ |
