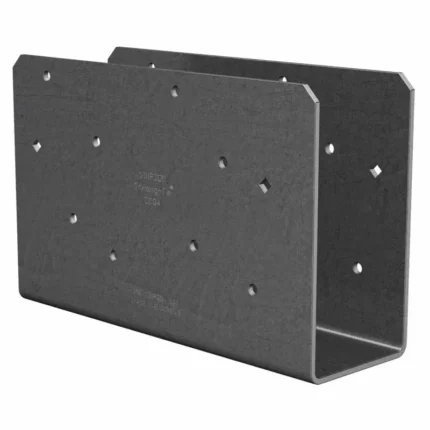

Simpson Strong-Tie ECCQ84SDS2.5 Quick Install End Column Cap for 8x Beam to 4x Post Connections
Simpson Strong-Tie ECCQ84SDS2.5 Description
The Simpson ECCQ84SDS2.5 End Column Cap enhances the strength and stability of your construction projects, providing reliable column-to-beam connections for wood construction.
Simpson Strong-Tie ECCQ84SDS2.5 Includes
- (1) End Column Cap
- (15) Simpson Strong-Drive SDS connector screws
Simpson Strong-Tie ECCQ84SDS2.5 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCQ84SDS2.5 Applications
- Column-to-beam connections in wood construction
- End-of-beam applications requiring enhanced support
- Projects requiring increased uplift loads for earthquake or wind resistance
Simpson Strong-Tie ECCQ84SDS2.5 Installation Overview
- Align the column cap with the beam and post
- Secure temporarily using diamond holes
- Fasten using the specified SDS screws
- Ensure bolt spacing meets NDS code requirements
- Verify the connection is secure
Simpson Strong-Tie ECCQ84SDS2.5 Specifications
| Finish | Gray Paint |
| Length | 8-1/2″ |
| Material | Steel |
| Beam size | 8x |
| Fasteners required | Top: (5) 0.148 x 3″ Face: (2) 0.148 x 3″ Joist: (8) 0.148 x 1-1/2″ |
| Height | 7″ |
| Manufacturer name | Simpson Strong-Tie |
| Post size | 4x |
| Thickness | 3 Gauge |
| Width | W1: 7-1/2″ W2: 3-5/8″ |
