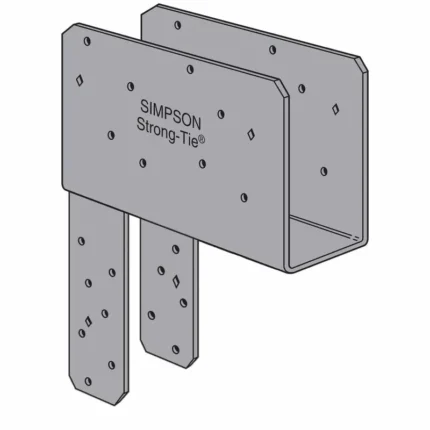

Simpson Strong-Tie ECCQ44SDS2.5 (4x Beam, 4x Post) Quick Install End Column Cap with SDS Screws
Simpson ECCQ44SDS2.5 Description
The Simpson ECCQ44SDS2.5 End Column Cap with SDS Screws is designed for strong column-to-beam connections in wood construction, featuring durable steel construction and gray paint finish.
Simpson ECCQ44SDS2.5 Includes
- (1) End Column Cap
- (1) Set of SDS Screws
Simpson ECCQ44SDS2.5 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson ECCQ44SDS2.5 Applications

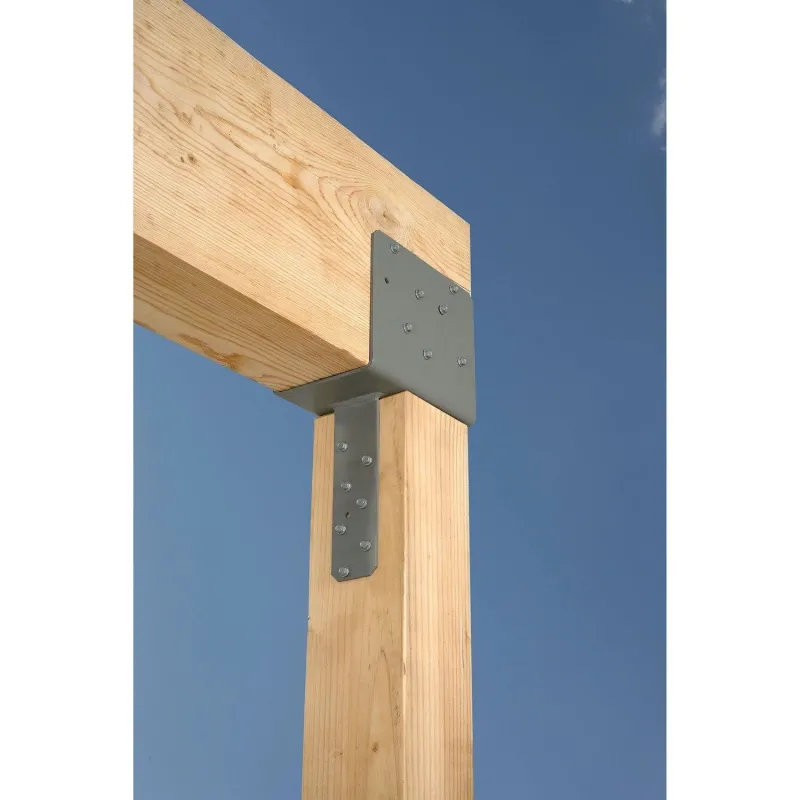

- Column-to-beam connections in wood construction
- End-of-beam applications for structural support
- Projects requiring increased uplift loads for earthquake or wind resistance
Simpson ECCQ44SDS2.5 Installation Overview
- Verify dimensions and alignment of the column and beam
- Position the column cap on the column and beam
- Secure the cap using the included SDS screws
- Ensure all fasteners are tightened according to specifications
Simpson ECCQ44SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 4x |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 7 Gauge |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
