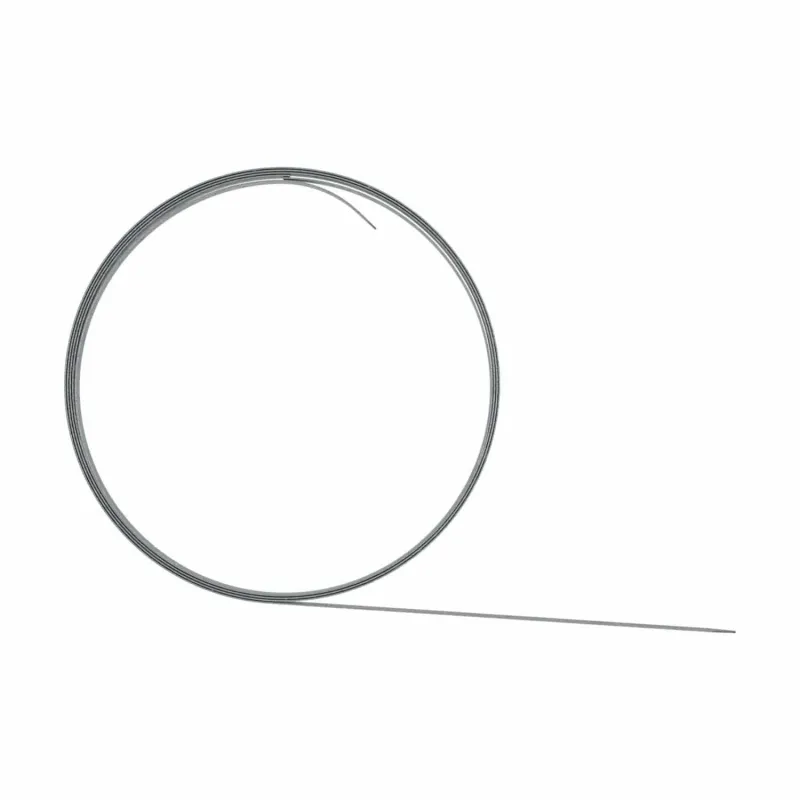

Simpson Strong-Tie CS22-R (25′ 22-Gauge) Galvanized Coiled Strap
Simpson CS22-R Description
The Simpson Strong-Tie CS22-R strap is a continuous utility strap designed to resist tension, that can be cut to length on the job site for maximum versatility.
Simpson CS22-R Includes
- (1) 22-Gauge Galvanized Coiled Strap 25 ft. Length
Simpson CS22-R Features
- Available in shorter rolls for smaller projects

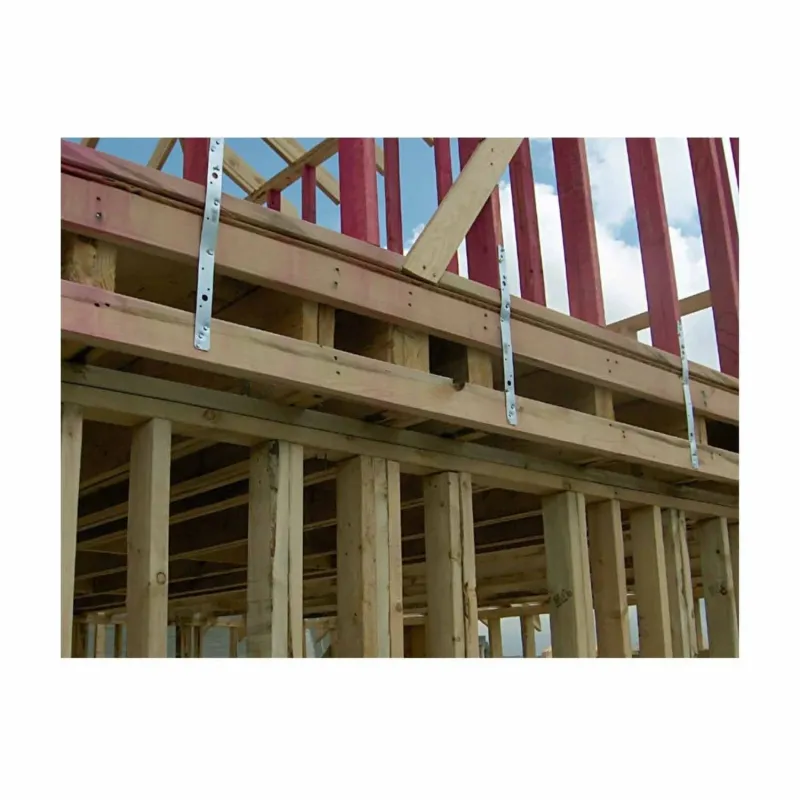

- Used for roof uplift and shear wall overturning resistance
- A cost-effective alternative to pre-cut straps
Simpson CS22-R Applications
- Roof uplift resistance
- Shear wall overturning resistance
- General wood-to-wood fastening
Simpson CS22-R Installation Overview
- Use all specified fasteners
- Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward
- Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances
- The cut length of the strap shall be equal to twice the “End Length” noted in the table plus the clear span dimension
Simpson CS22-R Specifications
| Gauge | 22 |
| Length | 25 ft. |
| Finish | Galvanized (G90) |
| Weight | 3.1 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
