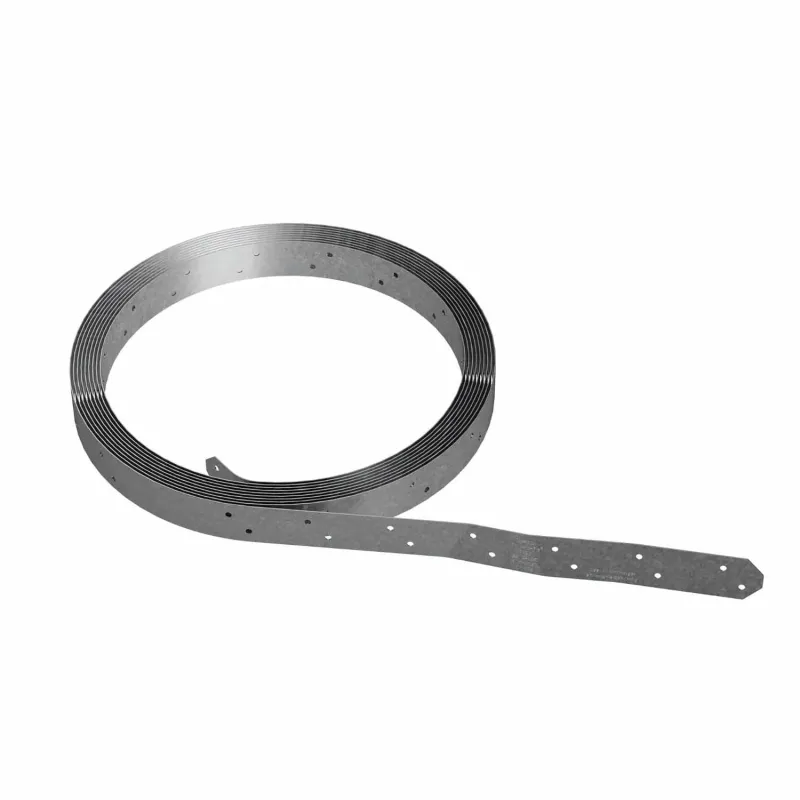

Simpson Strong-Tie CS20 (20-Gauge 250′) Galvanized Coiled Strap (1 Piece)
Simpson CS20 Description
The Simpson CS20 strap is a continuous utility strap designed for wood-to-wood fastening, offering versatility and ease of use.
Simpson CS20 Includes
- (1) 20-Gauge Galvanized Coiled Strap
Simpson CS20 Features
- Available in shorter rolls for smaller projects

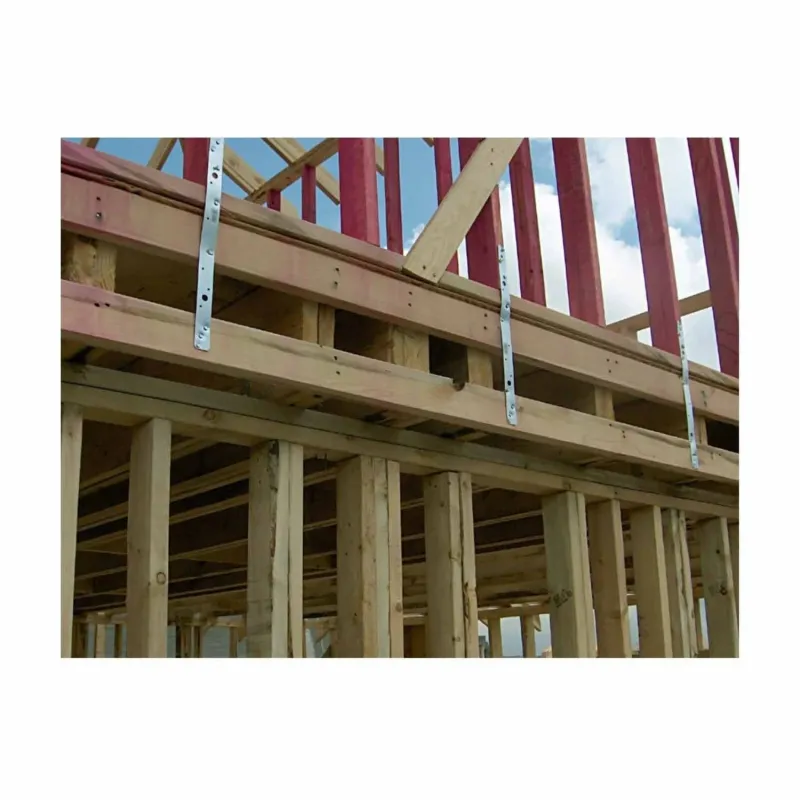

- Used for roof uplift and shear wall overturning resistance
- A cost-effective alternative to pre-cut straps
Simpson CS20 Applications
- Roof uplift resistance
- Shear wall overturning resistance
- General wood-to-wood fastening
Simpson CS20 Installation Overview
- Use all specified fasteners
- Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward
- Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances
- The cut length of the strap shall be equal to twice the ‘End Length’ noted in the table plus the clear span dimension
Simpson CS20 Specifications
| Gauge | 20 |
| Width | 1 1/4″ |
| Length | 250 ft. |
| Finish | Galvanized (G90) |
| Weight | 39 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
