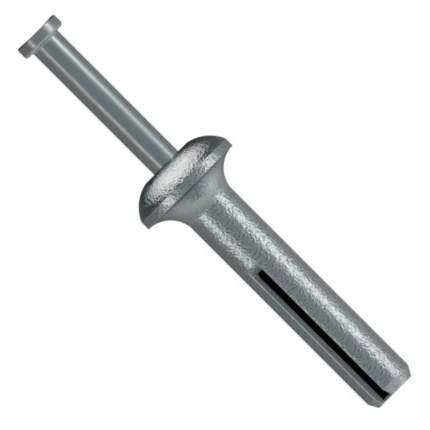

Simpson Strong-Tie CD37300M (3/8″ x 3″) Crimp Drive Anchor Zinc-Plated Mushroom Head (25 Pack)
Simpson Strong-Tie CD37300M Description
The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. It features a pre-formed curvature along the shaft for secure anchoring and a low-profile mushroom head for attaching wood or light-gauge steel.
Simpson Strong-Tie CD37300M Includes
- (25) Crimp Drive Anchors
Simpson Strong-Tie CD37300M Features
- Unique curved shaft design for quick installation
- Low-profile mushroom head for tamper-proof applications
- Zinc-plated for corrosion resistance in dry environments
- Made from durable carbon steel
Simpson Strong-Tie CD37300M Applications
- Attaching wood or light-gauge steel to concrete
- Use in grout-filled block for secure anchoring
- Ideal for dry, interior, and non-corrosive environments
Simpson Strong-Tie CD37300M Installation Overview
- Drill a hole using a 3/8 in. carbide bit to the required depth.
- Blow the hole clean of dust and debris.
- Drive the anchor through the fixture into the hole until the head is flush.
- Ensure the anchor is driven to the required embedment depth.
Simpson Strong-Tie CD37300M Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 3/8 in. |
| Length | 3 in. |
| Head Type | Mushroom Head |
| Drill Bit Size | 3/8 in. |
| Fixture Hole Size | 7/16 in. |
| Minimum Embedment Depth | 1-3/4 in. |
| Quantity | 25 |
NOTE: Use these products in dry, interior, and non-corrosive environments only.
