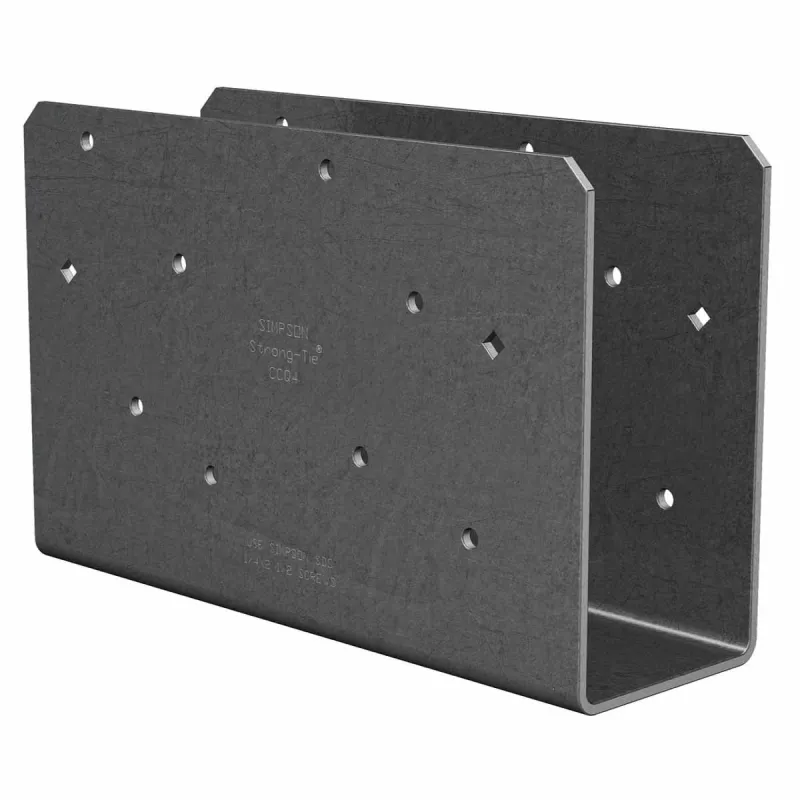

Simpson Strong-Tie CCOQ5-SDS2.5 (5-1/8″) 3Ga Quick Install Column Cap Only – Uncoated Steel
Simpson Strong-Tie CCOQ5-SDS2.5 Description
The Simpson CCOQ5-SDS2.5 Column Cap enhances the strength and stability of construction projects, providing a durable column-to-beam connection.
Simpson Strong-Tie CCOQ5-SDS2.5 Includes
- (1) Column Cap
- (16) 1/4″ x 2-1/2″ Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie CCOQ5-SDS2.5 Features
- Provides strong column-to-beam connection
- Strapless design for field welding to steel columns
- Made from durable 3-gauge steel
- Extended surface area for additional load distribution
- Includes SDS screws for quick installation
Simpson Strong-Tie CCOQ5-SDS2.5 Applications
- Wood-to-wood column-to-beam connections
- Field welding to steel columns

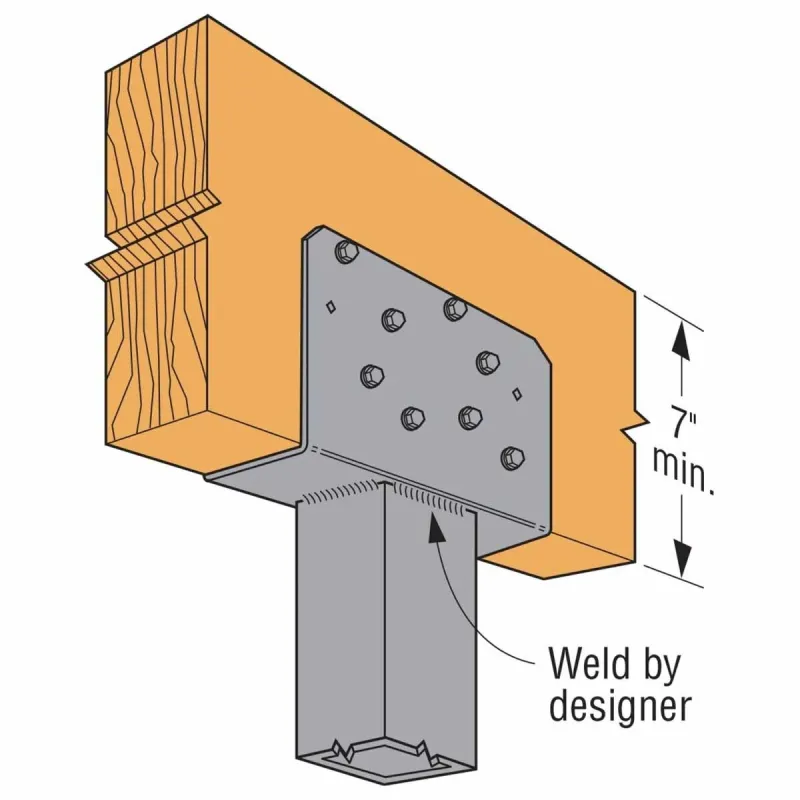

Simpson Strong-Tie CCOQ5-SDS2.5 Installation Overview
- Fasten with included SDS screws
- Ensure proper alignment of column and beam
- Weld to steel columns as per design requirements
Simpson Strong-Tie CCOQ5-SDS2.5 Specifications
| Material | Steel |
| Beam Size | 5x |
| Thickness | 3 Gauge |
| Height | 7″ |
| Length | 11″ |
| Width | 5-1/8″ |
| Fasteners Required | 1/4″ x 2-1/2″ Strong-Drive SDS Heavy-Duty Connector screws |
