Simpson Strong-Tie BC6R (6x) 18 Gauge Galvanized Post Cap for 6x Rough
Simpson Strong-Tie BC6R Description
The Simpson BC6R Galvanized Post Cap is designed for rough cut 6x lumber, providing secure beam-to-post connections with uplift and lateral resistance.
Simpson Strong-Tie BC6R Includes
- (1) Galvanized Post Cap for 6x Rough Lumber
Simpson Strong-Tie BC6R Features
- Designed for rough cut 6x lumber
- Provides secure beam-to-post connections
- Offers uplift and lateral resistance
- Made from durable 18-gauge steel
- Finished with G90 Galvanized coating
Simpson Strong-Tie BC6R Applications

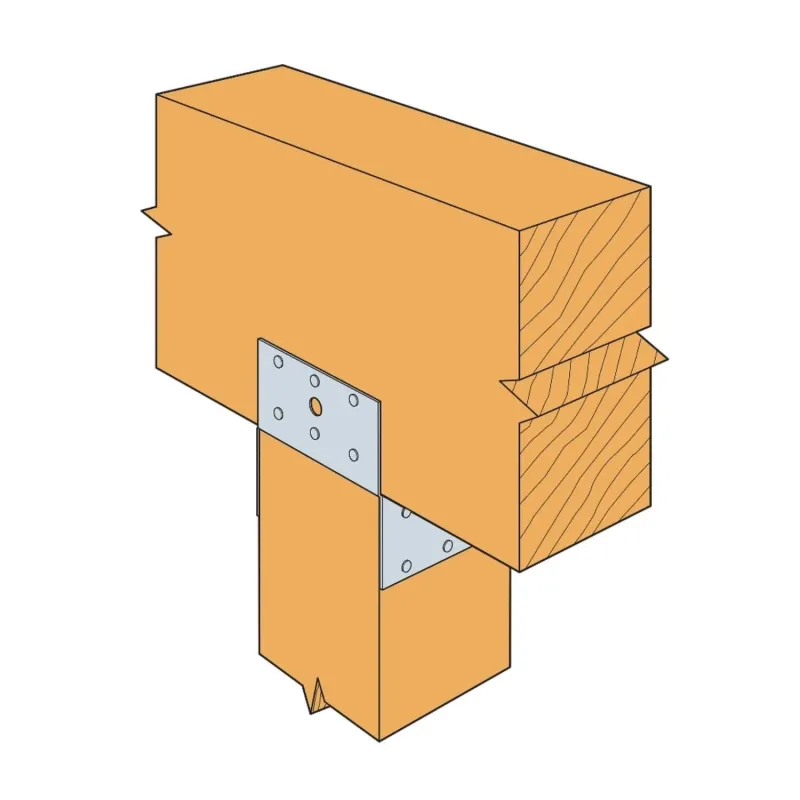

- Beam-to-post connections in construction projects
- Use with rough cut 6x lumber for structural support
Simpson Strong-Tie BC6R Installation Overview
- Align the post cap with the beam and post.
- Secure using specified nails for beam and post flanges.
- Ensure all fasteners are properly installed for maximum load capacity.
Simpson Strong-Tie BC6R Specifications
| Finish | G90 Galvanized |
| Length | 6″ |
| Material | 18-Gauge Steel |
| Fasteners required | Beam Flange – (12) 0.162 x 3-1/2″ Nails, Post Flange – (12) 0.162 x 3-1/2″ Nails |
| For Treated Lumber | No |
| Height | 3″ |
| Post size | 6x |
| Thickness | 18 Gauge |
| Width | 6″ |
NOTE: This connector is designed for rough cut lumber, not nominal lumber.
