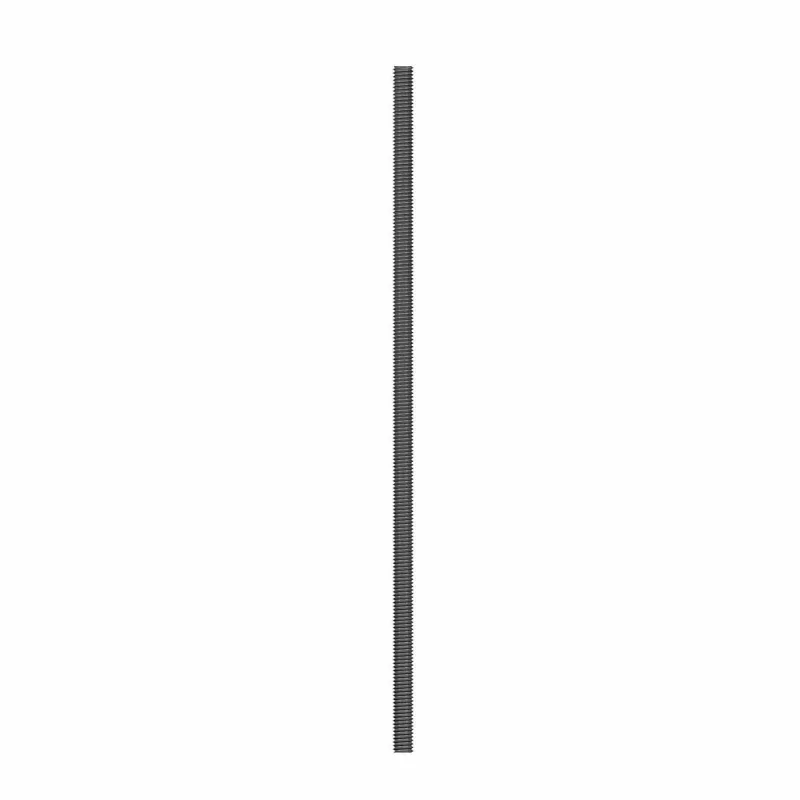

Simpson Strong-Tie ATR3/4X72 (3/4″ x 72″) All-Thread Rod for Structural Anchoring and Bracing
Simpson Strong-Tie ATR3/4X72 Description
The Simpson Strong-Tie ATR All-Thread Rods are fully threaded tension rods designed for use in anchoring systems, providing reliable performance in structural applications.
Simpson Strong-Tie ATR3/4X72 Includes
- (1) 3/4″ x 72″ All-Thread Rod
Simpson Strong-Tie ATR3/4X72 Features
- Fully Threaded Design: Provides maximum adjustability and ease of installation in various configurations.
- Standard Strength Material: Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards.
- Plain Finish: Cost-effective solution for applications where corrosion resistance is not critical.
- Versatile Applications: Suitable for use in ATS and URS systems, as well as general anchoring and bracing needs.
Simpson Strong-Tie ATR3/4X72 Applications
- Anchoring systems requiring tension transfer.
- Bracing for structural connections.
- Shearwall overturning restraint.
- Wind uplift restraint for roofs.

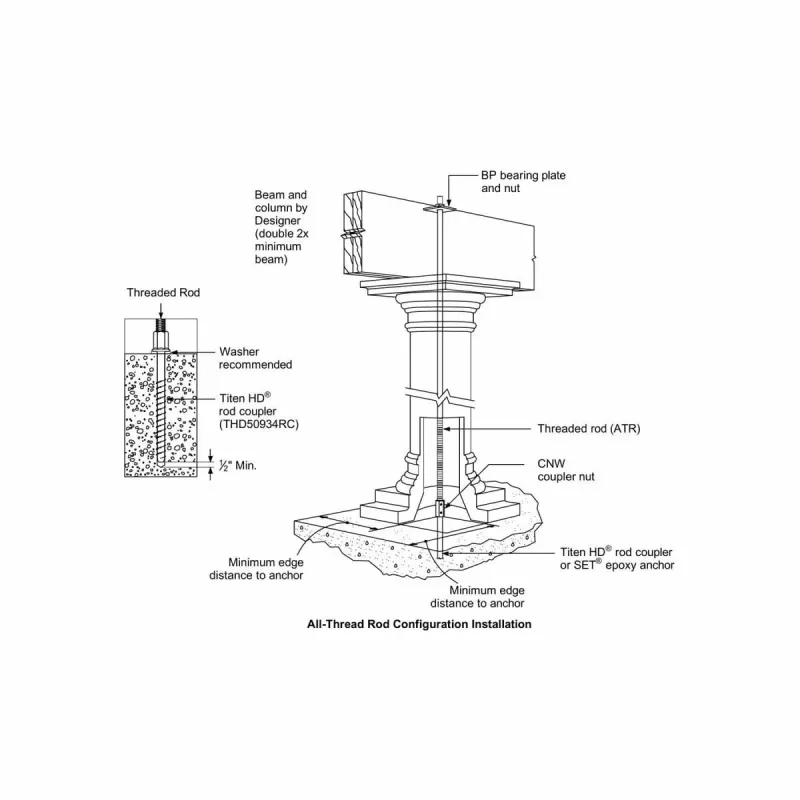

Simpson Strong-Tie ATR3/4X72 Installation Overview
- Ensure compatibility of nuts and washers with the threaded rod.
- Position the rod in the desired configuration.
- Secure the rod using appropriate fasteners.
- Verify tension transfer and structural integrity.
Simpson Strong-Tie ATR3/4X72 Specifications
| Diameter | 3/4″ |
| Finish | Plain |
| Length | 6′ |
| Material | Uncoated Black Steel |
| Additional Info | Standard – ATSM F1554 Grade 36, A36 or A307, Tension Capacity: 9,610 lbs. |
| Thread type | Coarse |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
