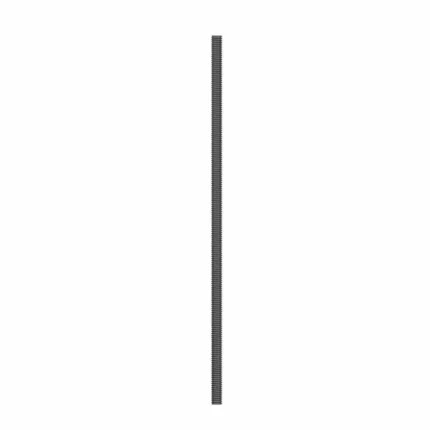

Simpson Strong-Tie ATR1/2X24 (1/2″ x 24″) Fully Threaded All-Thread Rod for Tension Transfer and Structural Connections
Simpson Strong-Tie ATR1/2X24 Description
The Simpson Strong-Tie ATR All-Thread Rods are fully threaded tension rods designed for use in Simpson Strong-Tie anchoring systems, including the Anchor Tiedown System (ATS) for shearwall overturning restraint and the Wind Uplift Restraint System (URS) for roofs.
Simpson Strong-Tie ATR1/2X24 Includes
- (1) 1/2 in. x 24 in. Fully Threaded All-Thread Rod
Simpson Strong-Tie ATR1/2X24 Features
- Fully Threaded Design: Provides maximum adjustability and ease of installation in various configurations.
- Standard Strength Material: Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards.
- Plain Finish: Cost-effective solution for applications where corrosion resistance is not critical.
- Versatile Applications: Suitable for use in ATS and URS systems, as well as general anchoring and bracing needs.
Simpson Strong-Tie ATR1/2X24 Applications
- Anchoring: Securely fastens structural components.
- Bracing: Provides tension transfer in structural connections.
- Structural Connections: Ensures reliable performance in various configurations.
Simpson Strong-Tie ATR1/2X24 Installation Overview
- Drill holes 1/4″ larger than the rod diameter.
- Insert the rod through the drilled holes in the flooring system after framing is completed.
- Ensure continuous drilling action through the sole plate and flooring system.
Simpson Strong-Tie ATR1/2X24 Specifications
| Diameter | 1/2″ |
| Length | 24″ |
| Material | Uncoated Black Steel |
| Finish | Plain |
| Thread Type | Coarse |
| Tension Capacity | 4,270 lbs. |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
