Simpson Strong-Tie APVB66 (6″ x 6″) Outdoor Adjustable Post Base – ZMAX/Black Powder Coated
Simpson APVB66 Description

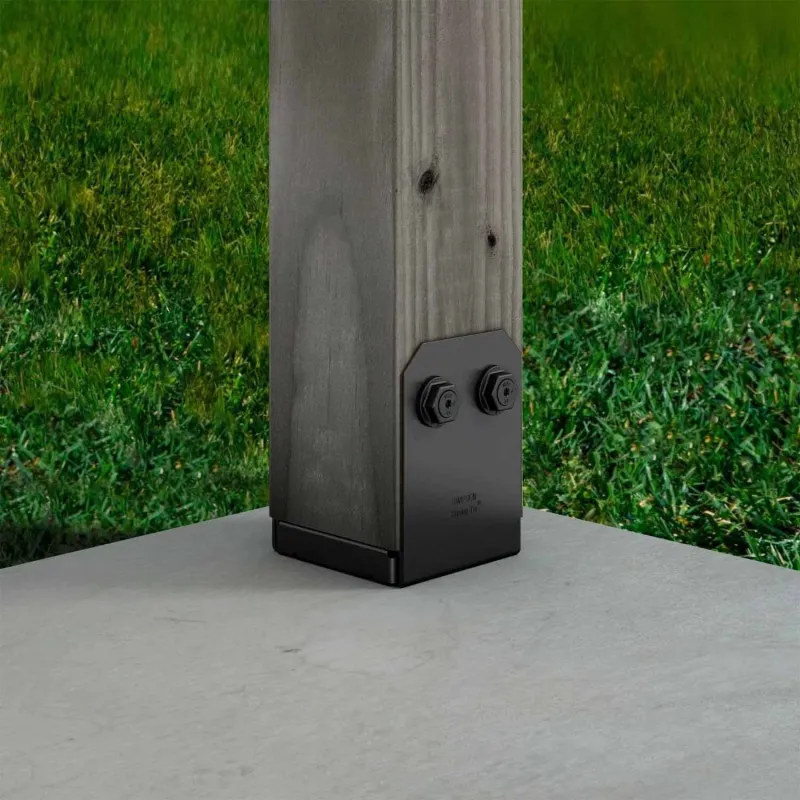

The APVB66 ZMAX Black Powder-Coated Post Base anchors wood posts to concrete, offering a clean, modern look and excellent corrosion resistance.
Simpson APVB66 Includes
- (1) ZMAX Black Powder-Coated Post Base for 6×6
Simpson APVB66 Features
- Designed to meet stringent building codes for seismic or high-wind events
- Slotted for adjustability
- Features 1″ standoff to help prevent rot at post end
- Fastener holes are slightly offset to help prevent fastener interference
- Heavy-duty steel with ZMAX galvanization and black powder-coated finish
Simpson APVB66 Applications
- Anchoring wood posts to concrete for decks, patios, pergolas, and pavilions
- DIY/Home Projects
Simpson APVB66 Installation Overview
- Position the post base on the concrete surface.
- Secure the base using the specified concrete anchor.
- Insert the wood post into the base and adjust for alignment.
- Fasten the post to the base using the specified screws and washers.

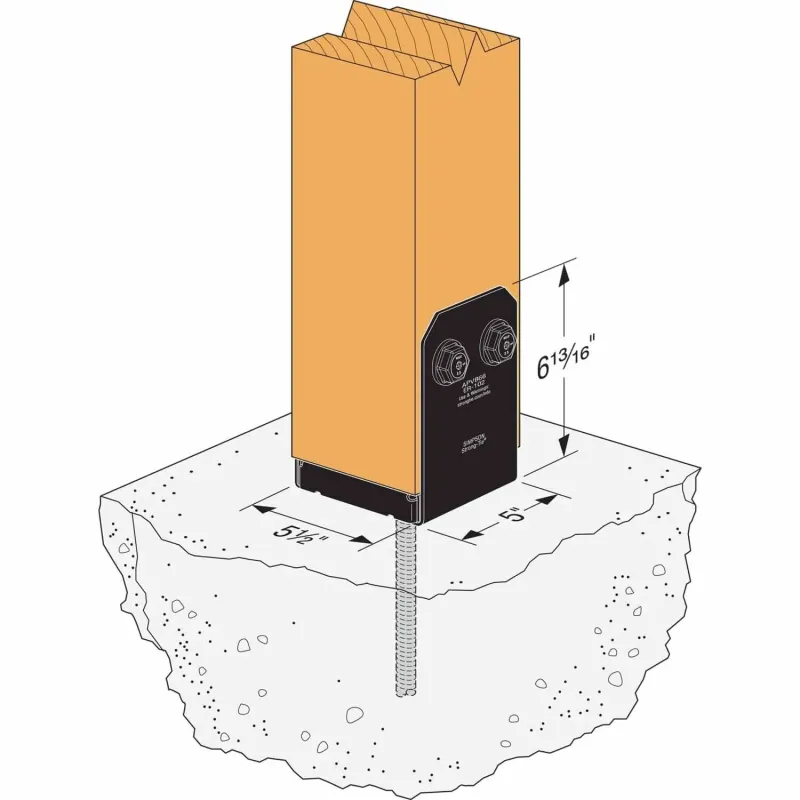

Simpson APVB66 Specifications
| Material | Carbon Steel |
| Finish | ZMAX and Black Powder Coat |
| Post Size | 6X6 |
| Thickness | 12 Gauge |
| Width | 5-1/2″ |
| Length | 5″ |
| Height | 6-13/16″ |
| For Treated Lumber | Yes |
NOTE: Ensure the correct fasteners are used in the specified positions to achieve the published load values
