Simpson Strong-Tie APLH26 (1-9/16″ x 5-1/8″) 14Ga Concealed-Flange Light Joist Hanger for 2×6, ZMAX/Black Finish
Simpson APLH26 Description

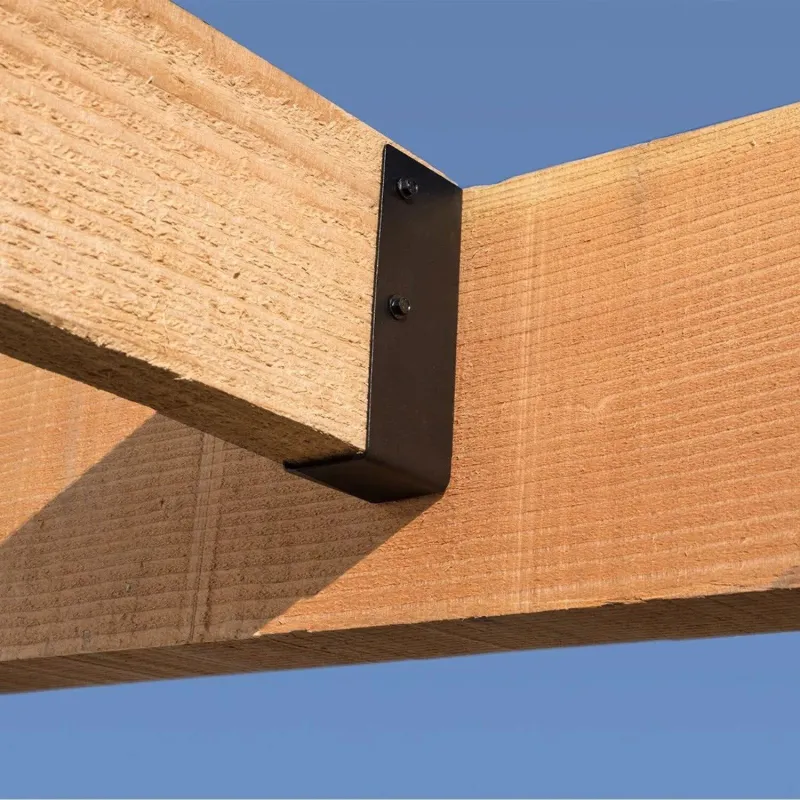

The Simpson APLH26 is a concealed flange light joist hanger designed for nominal 2×6 lumber, featuring a ZMAX galvanization and black powder coat for enhanced corrosion resistance.
Simpson APLH26 Includes
- (1) Outdoor Accents ZMAX Black Light Joist Hanger for 2×6
Simpson APLH26 Features
- Made from 14-gauge steel with ZMAX galvanization and black powder coat
- Concealed flange design for a clean, finished appearance
- Enhanced corrosion resistance for exterior and treated-wood applications
Simpson APLH26 Applications
- Connecting nominal 2×6 joists to beams in outdoor structures
- Ideal for decks, pergolas, and pavilions
Simpson APLH26 Installation Overview
- Use Simpson Strong-Tie SD10112DBB Connector screws for installation
- Ensure proper alignment and secure fastening for optimal performance
Simpson APLH26 Specifications
| Finish | ZMAX and Black Powder Coat |
| Material | Carbon Steel |
| Color | Black |
| Fasteners required | (10) #10 x 1-1/2″ SD10112DBB Connector screws |
| For Treated Lumber | Yes |
| Height | 5″ |
| Joist size | 2″ X 6″ Nominal |
| Thickness | 14 Gauge |
| Width | 2-1/16″ |
NOTE: This connector is designed for nominal lumber, not rough cut lumber. Ensure the correct joist size is used for proper fit.
