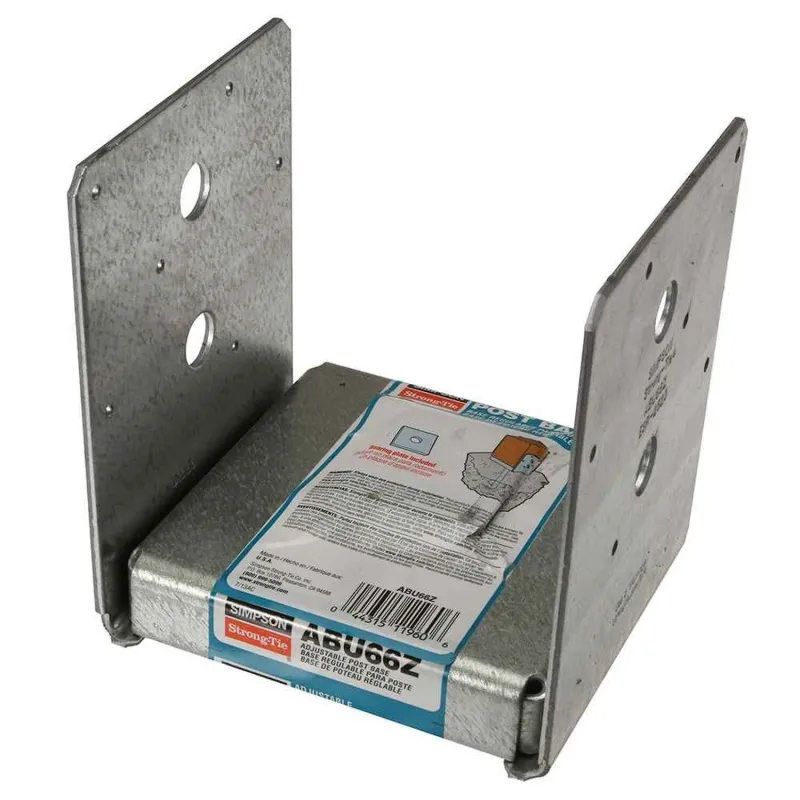

Simpson Strong-Tie ABU66Z (6″ x 6″) ABU Adjustable Post Base with Uplift – ZMAX Finish
Simpson ABU66Z Description
The Simpson ABU66Z Adjustable Post Base is designed for securely attaching 6×6 wood posts to concrete, featuring a ZMAX finish for corrosion resistance and a 1-inch standoff to prevent rot.
Simpson ABU66Z Includes
- (1) Adjustable Post Base ZMAX Finish for 6×6
Simpson ABU66Z Features
- Increased Load Capacity: Engineered to withstand higher uplift loads.
- Versatile Application: Designed for use with 6×6 lumber and features a slotted base for adjustable installation.
- Enhanced Durability: Includes a 1-inch standoff design to prevent post rot.
- Light Corrosion Resistance: ZMAX coating provides protection against corrosion.
Simpson ABU66Z Applications
- Deck Framing: Securely attaches wood posts to concrete for stable deck construction.
- Fence Installation: Provides a durable base for wooden fence posts.
- Pergola Construction: Ensures strong support for pergola posts.
- General Construction: Suitable for various projects requiring wood-to-concrete connections.
Simpson ABU66Z Installation Overview
- Prepare the concrete surface and ensure it is clean and level.
- Position the post base on the concrete and align it as needed.
- Secure the base using specified fasteners such as nails, bolts, or concrete anchors.
- Insert the wood post into the base and ensure it is properly seated.
- Verify all fasteners are tightened and the post is stable.
Simpson ABU66Z Specifications
| Finish | ZMAX |
| Material | Steel |
| Fasteners required | (12) 0.162 x 3-1/2″ Nails OR (2) 1/2″ Bolts, (1) 5/8″ Concrete Anchor |
| For Treated Lumber | Yes |
| Post size | 6×6 |
NOTE: Ensure the correct fasteners are used in the specified positions to achieve the published load values
