Simpson Strong-Tie ABU46SS Stainless Steel Adjustable Standoff Post Base for 4×6 – Corrosion Resistant Concrete Connector
Simpson Strong-Tie ABU46SS Description

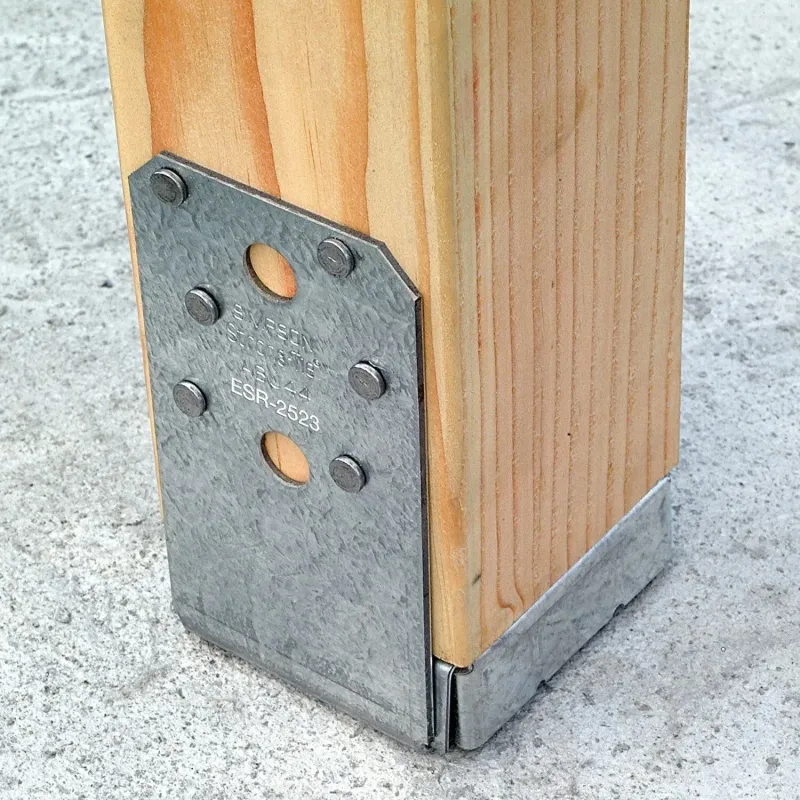

The Simpson ABU46SS 4×6 Adjustable Post Base is designed to securely attach wood posts to existing concrete, offering high capacity uplift support and corrosion resistance.
Simpson Strong-Tie ABU46SS Includes
- (1) ABU46SS Adjustable Post Base
Simpson Strong-Tie ABU46SS Features
- Increased Load Capacity: Engineered to withstand higher uplift loads, making it ideal for areas prone to earthquakes or high winds.
- Versatile Application: Intended for use with 4×6 lumber with a slotted base for adjustable installation.
- Enhanced Durability: The 1-inch standoff design meets code requirements and helps prevent post rot.
- Maximum Corrosion Resistance: Stainless steel construction offers unmatched corrosion resistance and longevity, ideal for harsh environments.
Simpson Strong-Tie ABU46SS Applications
- Decks: Securely attaches wood posts to existing concrete.
- Construction Projects: Provides high capacity uplift support for structural stability.
Simpson Strong-Tie ABU46SS Installation Overview
- Place the base, cut washer(s) or load transfer plate(s) and nut(s) on the anchor bolt(s).
- Make any necessary adjustments to post placement and tighten the nut securely on the anchor bolt.
- Place the standoff base and then the post in the ABU.
- Fasten the post using nails or Strong-Drive SD Connector screws or bolts.
Simpson Strong-Tie ABU46SS Specifications
| Material | Stainless Steel |
| Post Size | 4×6 |
| Fasteners Required | (12) 0.162 x 3-1/2″ Nails OR (2) 1/2″ Bolts, (1) 5/8″ Concrete Anchor |
| For Treated Lumber | Yes |
NOTE: Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
