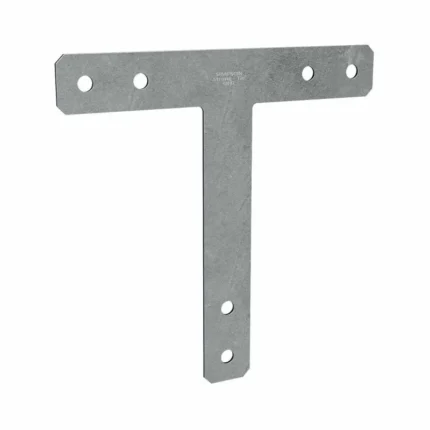

Simpson Strong-Tie 1212HTHDG (12″ x 12″) 7-Gauge HT Hot-Dip Galvanized Heavy T Strap
Simpson Strong-Tie 1212HTHDG Description
The Simpson Strong-Tie Heavy T Strap 12 x 12 is a robust connector designed for wood-to-wood connections, offering high-load transfer and corrosion resistance.
Simpson Strong-Tie 1212HTHDG Includes
- (1) Heavy T Strap 12 x 12
Simpson Strong-Tie 1212HTHDG Features
- Heavy-duty construction for maximum load capacity
- Hot-dip galvanized finish for corrosion resistance
- Pre-punched holes for easy installation
- ICC-ES code compliant for structural integrity
- Versatile fit for various wood-to-wood applications
Simpson Strong-Tie 1212HTHDG Applications
- Securing intersections of horizontal and vertical framing members
- Reinforcing post-to-beam and beam-to-beam joints
- Framing in agricultural buildings, pergolas, and covered porches
- High-wind or seismic zones requiring enhanced lateral or uplift resistance

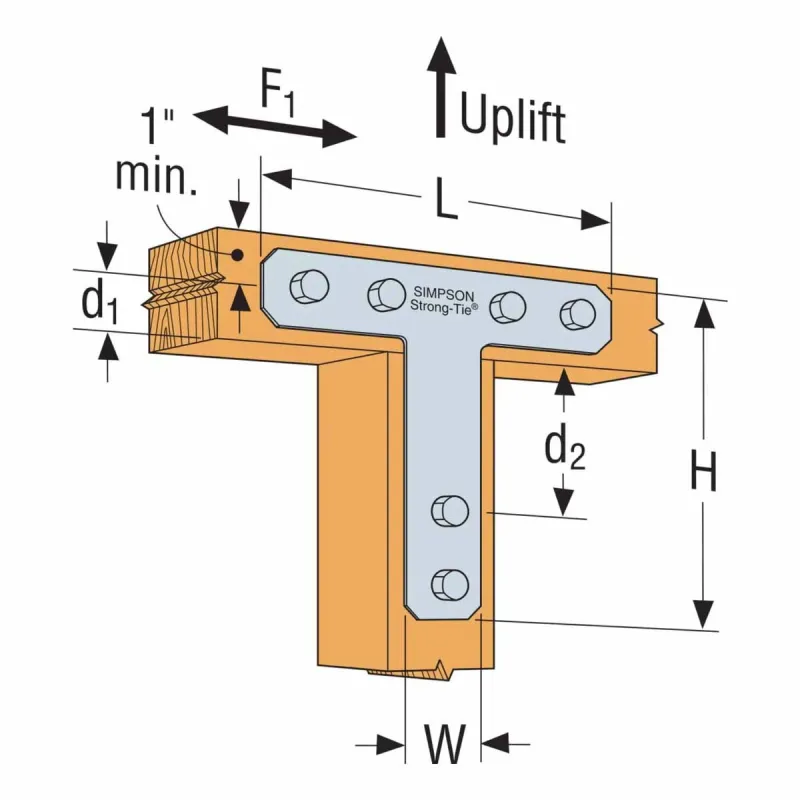

Simpson Strong-Tie 1212HTHDG Installation Overview
- Install with all specified fasteners to achieve listed load values
- Position strap flush with framing members for optimal contact
- Use with 16d common nails or approved Simpson Strong-Tie SD screws
- Refer to Simpson Strong-Tie load tables and local code requirements for specific fastener spacing and load ratings
Simpson Strong-Tie 1212HTHDG Specifications
| Finish | Hot Dip Galvanized |
| Length | 12″ |
| Material | Galvanized Steel |
| Fasteners required | Bolts – (6) 5/8″ |
| Height | 12″ |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 7 Gauge |
| Width | 2-1/2″ |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
