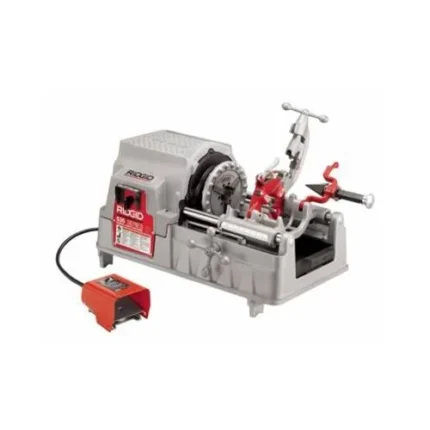

RIDGID 84097 535A (pipe 1/8 – 2″) Automatic Threading Machine (2 Die Sets 1 Die Head Included)
Ridgid 84097 Includes
- (1) No. 811A Universal, Quick-opening Die Head (for models 816/817 die heads) sold separately
- (1) No. 341 Reamer.
- (1) No. 820 Cutter.
- (1) Set 1/2″-3/4″ Universal High-Speed Dies.
- (1) Set 1″ – 2″ Universal High-Speed Dies.
- (1) Gallon Stainless Steel Premium Oil.
- (2) Hex Wrenches.
- (1) Spare E-1032 Cutter Wheel.
- Stand Not Included***
Ridgid 84097 Features
- Automatic chuck
- Large 1.75 gallon oil reservoir.
- 100% greater chip tray capacity.
- Generous top cover area for keeping tools and fitting handy.
- High clearance carriage.
- Can be used with geared threader model 141
- Length gauge for quick
- Chuck: automatic with four reversible forged jaws.
- Rear Centering Device: automatic, centering only.
- Cutters: self-centering, full-floating. Two models available:
- One Standard. No. 820 Wheel-Type Cutter, pipe capacity 1/8″-2″ (3mm-50mm), bolt capacity 1/4″-1″ (6mm-25mm).
- Two Optional. No. 821 Blade-Type cutter, pipe capacity 1/2″-2″ (12mm-50mm). See ordering chart (both sold separately)
Ridgid 84097 Specifications
| Model # | 535A |
| Pipe Capacity | 1/8″ – 2″, 2-1/2″-4″ with 141 geared threader. |
| Bolt Capacity | 5/16″ – 2″ |
| Motor | 2 HP, 115V, 60 Hz |
| Amps | 20 reversible induction motor. |
| Spindle Speed | 3 speeds 16/46/58 RPM |
| Reamer | 5-Flute cone, RH 1/8″ – 2″ |
