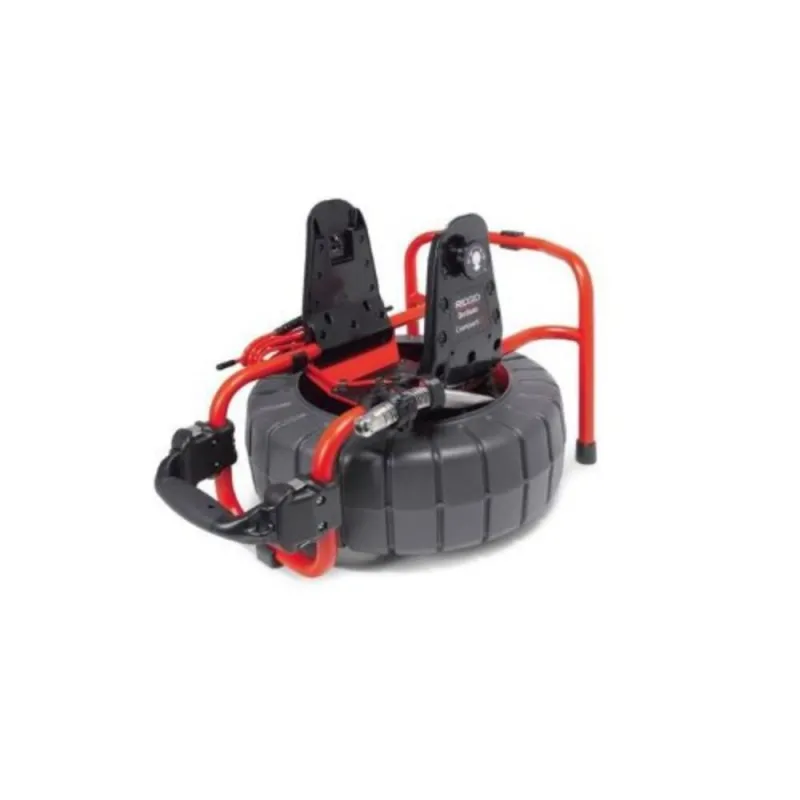

Ridgid 48093 SeeSnake Compact2 Reel with Self-Leveling Camera (NTSC)
Ridgid 48093 Description
The RIDGID® SeeSnake® Compact2 camera reel offers fast, easy setup and can take on the most diverse and demanding inspection conditions. The Compact2 features a self-leveling camera at the end of a push cable stiff enough to give you the power to push through small or restricted pipes, yet flexible enough to make multiple tight turns. The Compact2 has a 100′ (30 m) long, friction-reducing 0.26″ (6.7 mm) push cable and a 1″ (25 mm) self-leveling camera. Once a point of interest has been found in the pipe, use the integrated 512 Hz sonde and a receiver to locate its position. The RIDGID® SeeSnake® Compact2 camera reel features an easy all-in-one setup when used with the RIDGID® SeeSnake® CS6x Versa® monitor while docked in the Reel, but is compatible with all SeeSnake® monitors offering.
Ridgid 48093 Includes
- (1) Camera Reel
- (5) Pipe Guides
- (1) USB with HQ Software
Ridgid 48093 Features
- 100′ (30 m) long, friction-reducing 0.26″ (6.7 mm) push cable and a 1″ (25 mm) self-leveling camera designed to inspect pipes ranging from 1.5″ to 6″ (40 mm to 150 mm) in diameter, depending on pipe conditions
- The push cable is stiff enough to give you the power to push through small or restricted pipes, yet flexible enough to make multiple tight turns
- Powerful FleXmitter® sonde has a long range and preserves the camera’s ability to make turns
- Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable
- Quick-release docking system for fast, efficient job setup with the SeeSnake CS6x VERSA monitor
- Use with the SeeSnake® CSx Via and HQx® Dock for a convenient “bring-your-own-screen” streaming solution
- Download the free HQx Live app to view and record inspection jobs on your phone or tablet
Ridgid 48093 Specifications
| Line Capacity | 1.5″ to 6″ (40 mm to 150 mm) |
| Push Cable Length | 100′ (30 m) |
| Push Cable Diameter | 0.26″ (6 mm) |
| Push Cable Core | 0.14″ (3.5 mm) Fiberglass |
| Push Cable Bend Minimum Radius | 2.5″ (63.5 mm) |
| Camera Type | 1″ (25 mm) Self-Leveling |
| Resolution | 656 x 492 (NTSC), 768 X 576 (PAL) |
| Light Source | 6 LEDs |
| Sonde | 512 Hz |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 14°F to 158°F (-10°C to 70°C) |
| Ingress Protection without Monitor | IPx5 |
