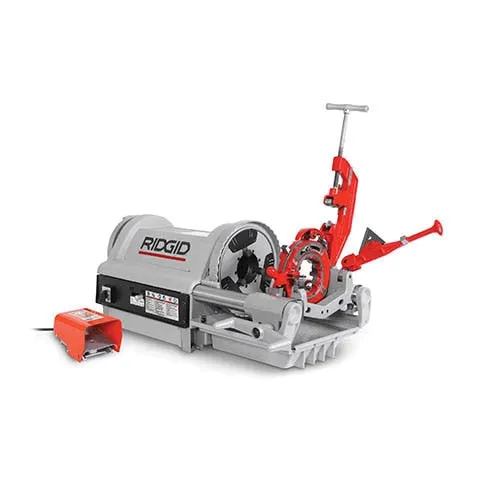

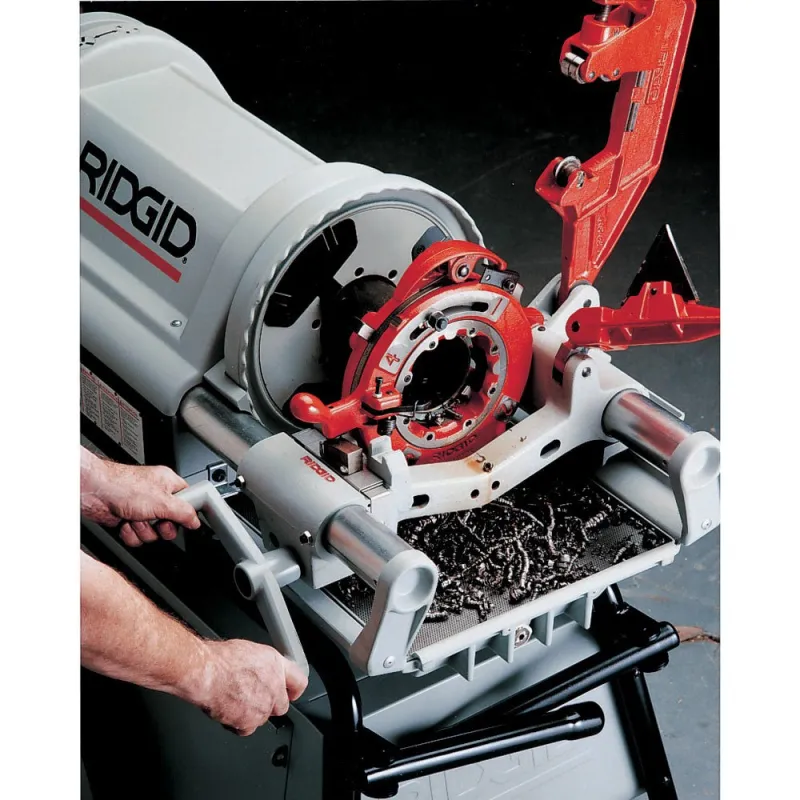

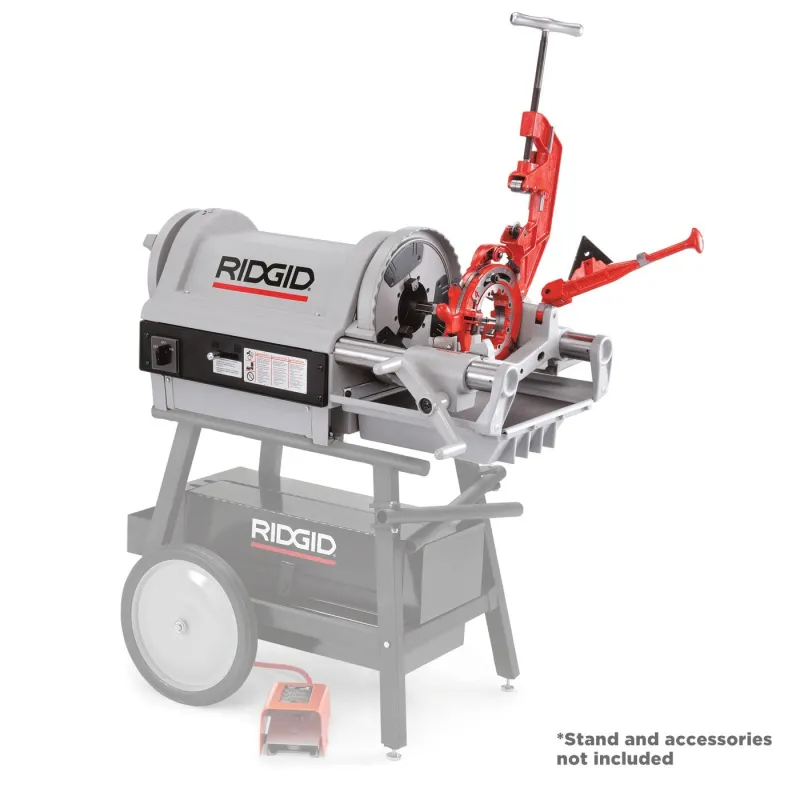

RIDGID 26092 Model 1224 Pipe Threading Machine 1/4″-4″ Capacity
Ridgid 26092 Description
Thread A Variety Of Pipes, Including Black, Galvanized, Plastic-Coated Pipe, Along With Stainless Steel, Imc And Heavy-Wall Conduit, And Rod Up To 30 Rockwell C, Using This Ridgid Model 1224 Threading Machine (26092). Its Induction Motor Minimizes Noise For Quieter Operation.
Ridgid 26092 Includes
- (1) Threading Machine
- 26132 – 711 SO Universal Right Hand Dies
- 26152 – 714 SO Receding Right Hand Dies
- 26192 – Dies. 1224 2 – 1/2″ – 4 NPT HS
- 47745 – 1/2″ – 3/4″ Universal Alloy Die Set
- 47750 – 1″ – 2″ Universal Alloy Die Set
- 26212 – 1/4″-4″ Wheel-Type Cutter
- 26217 – 1/4″-4″ Blade-Type Reamer
- 33125 – Wheel, Cutter F229 3 & 4 HD
- 46030 – 3/16″ Hex Key
- 46040 – Key, Hex 7/32
- 46190 – Hex Key, 1/4″
- 70835 – Nu-Clear Thread Cutting Oil
- 83975 – Wrench, 3/4 COMB
- 53693 – Tool Box
Ridgid 26092 Features
- Threads A Variety Of Pipes: Black, Galvanized, Plastic-Coated Pipe, Along With Stainless Steel, Imc & Heavy-Wall Conduit, And Rod Up To 30 Rockwell C
- Induction Motor Helps Minimize Noise
- Special Capacitor-Start/Capacitor-Run Motor Allows It To Thread A Full Range Of Material Where Voltage Drop Is Experienced
- 1/4″-2″ Universal Die Head; 2-1/2″ To 4″ Receding Die Head Allows Cutting Of Tapered Or Straight Npt/Npsm Or Bspt/Bspp Threads
- Constant And Proper Lubrication Of Dies And Workpiece With Through-Head Oiling
Ridgid 26092 Specifications
| Pipe Capacity | 1/4″-4″ (6mm-100mm) 4″-6″ (100mm-150mm) with 161 Geared Threader |
| Bolt Capacity | 1/4″-2″ (6mm-50mm) |
| Motor | 1-1/2 HP, single-phase, 60 Hz, induction type |
| Motor Control | Reverse/Off/Forward, heavy-duty rotary-type and integral foot switch |
| Spindle Speed | 36/12 RPM |
| Gear Box | Two-speed gear box 3 |
| Chuck | Hammer-type with replaceable rocker-action jaw inserts |
| Rear Centering Device | Cam action |
| Cutter | Model 764 full-floating, self-centering 1/4″-4″ with F-229 cutter wheel |
| Reamer | Model 744, 1/4″-4″ blade-type |
| Pump | Self-priming, gerotor-type, automatic-reversing, constant-flow |
