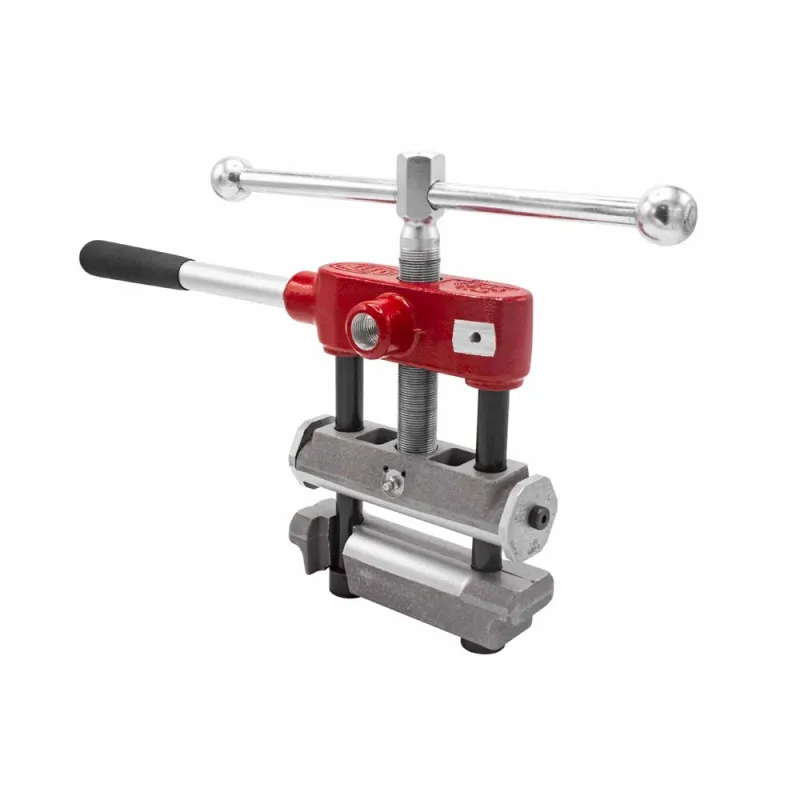

Reed PES2CTSDB 04333 PE Double Squeeze Tool for 1/2″ – 2″ CTS
Includes:
• (1) PE Squeeze-Off Tools
Features:
• Optimized double bar design best manages flow control.
• Hand placement area machined into ends of bottom bar allows for easy lifting.
• Positive stops prevent damage caused by over-clamping.
• Easy to use in line because of swing bar and no loose parts.
• Aluminum parts on PES2DB and larger tools reduce tool weight for easier handling.
• Improved screw drive on PES4DB and larger models reduces operator effort.
Specifications:
• Pipe Capacity: ½” – 2″
Double bar PE squeeze-off tools provide two pinch points to increase squeeze confidence and yield optimal flow control. REED offers the best designed tools for stopping flow in ½” up to 8” PE pipe. User input resulted in features like hand grooves for lifting, reduced weight, and a controlled, low-effort squeeze. Sliding bar handles on these manual squeeze tools make work in tight places easier and increase leverage for tightening. Fine-pitched thread on feed screw allows for a consistent, smooth squeeze. Grease fittings at friction points make operation smooth and extend tool life. Aluminum bars are anodized or painted for protection from the elements. All PE squeeze tools use positive stops to prevent damage caused by over-clamping. Multiple size/SDR settings on one pair of stops provide convenient over-squeeze protection for standard pipe sizes. Plus, users may opt for color-coded stops on the PES4DB to make visual stop alignment simpler.
