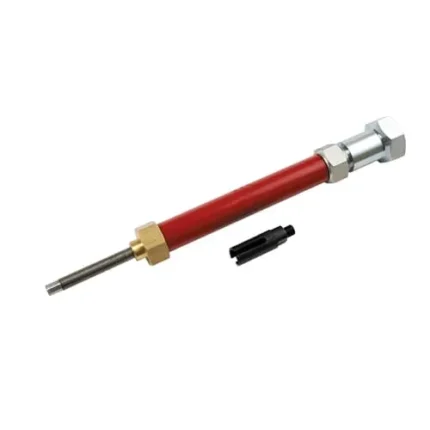

Reed DMPVC1 Drilling Machine For Pvc – 1″ W/Corp Adapter & Shell Cutter
INCLUDES:
• (1) Drilling Machine
FEATURES:
• Drill through the pipe wall while the system is under pressure.
• Drill travel can handle PVC, C900 and PE wall thicknesses up to 1 1/8″.
• Steel parts are plated or powder epoxy coated for corrosion resistance.
SPECIFICATIONS:
• Length: 17.5
• Width: 2
• Height: 2
The PVC/PE Drilling Machine is used to cut through the pipe wall via the corporation stop inserted into the service saddle while under pressure. The DMPVC drilling machine consists of the base unit and corporation (corp) adapters in a carrying case. PVC/PE shell cutters are sold separately. DMPVCBASE drilling machine consists of the base unit in a storage tube, allowing the customer to purchase necessary corp adapters and shell cutters. DMPVC3/4 and DMPVC1 kits include one shell cutter, one corp adapter, DMPVCBASE, and a storage tube. DMPVC COMPLETE ships in a plastic toolbox and includes the DMPVCBASE along with corp adapters and PVC/PE shell cutters for both 3/4” and 1” drilling projects. NPT to CC corp adapter converters, and a 7/16” socket wrench complete the set.
Spec sheet / Conversion chart available #01071
