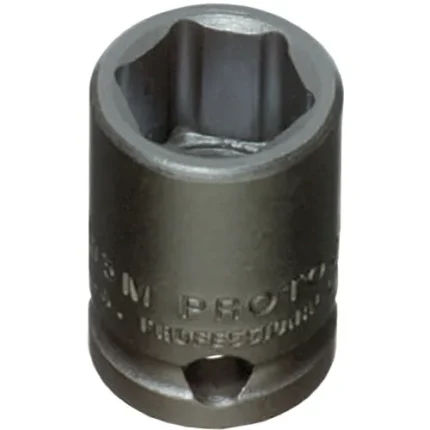

Proto J7730HT 3/8″ DRIVE THIN WALL DEEP IMPACT SOCKET 15/16″ – 6 POINT
INCLUDES:
• (1) 3/8″ DRIVE THIN WALL DEEP IMPACT SOCKET 15/16″ – 6 POINT
FEATURES:
• Reduced wall thickness helps improve access to fasteners in restricted areas.
• All impact sockets feature one through hole and a groove to accept a retaining ring and pin to secure the socket to the power tool anvil.
• Chamfered service ends for quick and positive fastener engagement.
• Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
• Thinner walls help improve productivity by making it easier to gain access to fasteners in confined spaces.
• Extra deep length helps improve access in confined areas.
SPECIFICATIONS:
• SIZE: 15/16″
• NUT END OUTSIDE DIAMETER: 1-1/4″
• DRIVE END OUTSIDE DIAMETER: 1-1/4″
• NUT DEPTH: 13/16″
• BOLT CLEARANCE DEPTH: 2-5/16″
• OVERALL LENGTH: 2-27/32″
• WEIGHT: 0.54 lbs
• DRIVE SIZE: 3/8″
• POINT SIZE: 6
• FINISH: Black Oxide
• LENGTH TYPE: Deep
• UNIT OF MEASURE: Fractional
• SPECIFICATION ASME: ASME B107.110-2012
