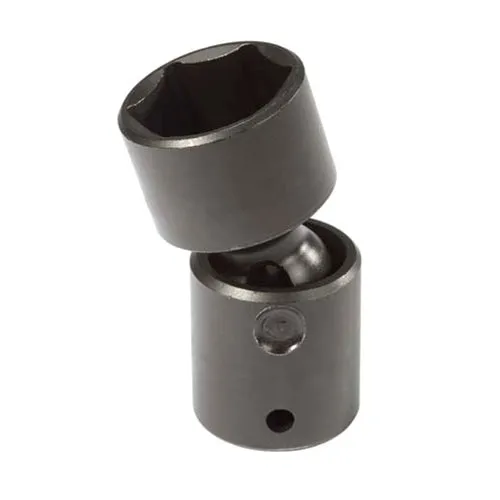

Proto J74287P 1/2″ DRIVE UNIVERSAL IMPACT SOCKET 1-1/4″ – 6 POINT
Proto J74287P Includes
- (1) 1/2″ DRIVE UNIVERSAL IMPACT SOCKET 1-1/4″ – 6 POINT
Proto J74287P Features
- Ball and spring design which allows for a 30° working angle.
- Smooth 360° rotation.
- Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
Proto J74287P Specifications
| SIZE | 1-1/4″ |
| NUT END OUTSIDE DIAMETER | 1-5/8″ |
| DRIVE END OUTSIDE DIAMETER | 1-3/8″ |
| NUT DEPTH | 3/4″ |
| BOLT CLEARANCE DEPTH | 1-1/32″ |
| OVERALL LENGTH | 3-3/16″ |
| WEIGHT | 1.86 lbs |
| DRIVE SIZE | 1/2″ |
| POINT SIZE | 6 |
| FINISH | Black Oxide |
| LENGTH TYPE | Standard |
| UNIT OF MEASURE | Fractional |
