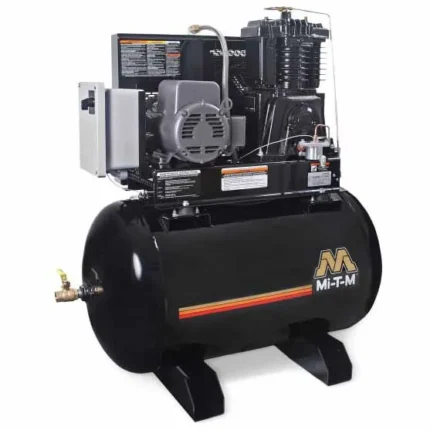

Mi-T-M ACS-23175-80H 80-Gallon Two Stage Electric Air Compressor
FEATURES:
• Powder coated ASME coded 80-gallon receiver tank
• Quality two stage compressor
• Stainless-steel braided discharge hose
SPECIFICATIONS:
• CFM @ 175 PSI : 23.5
• HP/Motor: 7.5HP, 230V, 1Ø, 31.0A
• Bolt Down Dimensions (LxW): 20.75 x 23.5 inches
• Warranty: 2 Year Pump Exchange
• Warranty: 1 Year Electric Motor
• Warranty: ASME – U
Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head and cylinder for extended durability · Stainless-steel braided discharge hose · Oil level sight indicator
Motor: Low RPM industrial motor
Frame: Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated totally enclosed belt guard · Fly wheel for extra cooling and longer life
Components: ASME safety valves · Belt tightening system pulls motor straight to ensure constant belt alignment · Intake filter/silencer · Tank shut-off valve
