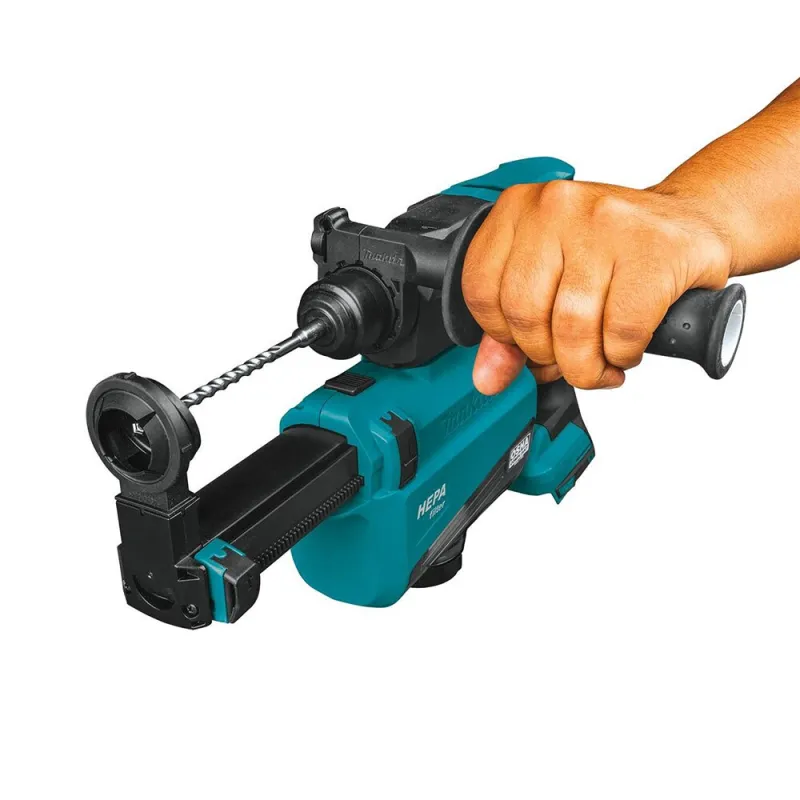

Makita XRH12ZW 18V LXT Lithium-Ion Brushless 11/16″ AVT Rotary Hammer
Makita XRH12ZW Description
18V LXT Brushless cordless 11/16 In. AVT rotary hammer, accepts SDS-Plus bits, w/ HEPA dust extractor attachment, tool only (XRH12ZW) is a cordless concrete solution that features AWS capability for maximum efficiency and convenient dust extraction. The efficient HEPA filter captures 99.97% of particulates 0.3 microns and larger. The compatible dust extractor attachment (DX05) with HEPA filter is OSHA table 1 compliant. It’s powered by two 18V LXT batteries and an efficient Brushless Motor for maximum power, speed and run-time for corded demands, without the cord. There is a 3-modes of operation: rotation only, hammering with rotation, and hammering only. The variable speed trigger enables the user to match the speed to the application. It is ideal for a range of trades including mechanical/electrical/plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, maintenance operations, and more. It accepts SDS-Plus bits. The rotary hammer is AWS capable with auto-start wireless system, which utilizes Bluetooth technology for wireless power-on/off communication between tool and equipped dust extractor. To activate AWS, simply install the auto-start wireless transmitter (198901-5, sold separately) and synchronize with an AWS-equipped dust extractor (sold separately). For reduced vibration, it’s equipped with anti-vibration technology (AVT). More than just a padded handle, AVT is an internal counterbalance that uses air pressure to move counterweight pistons in the opposite direction of the drive piston to actively reduce vibration without a compromise in performance.
Makita XRH12ZW Includes
- (1) Rotary Hammer

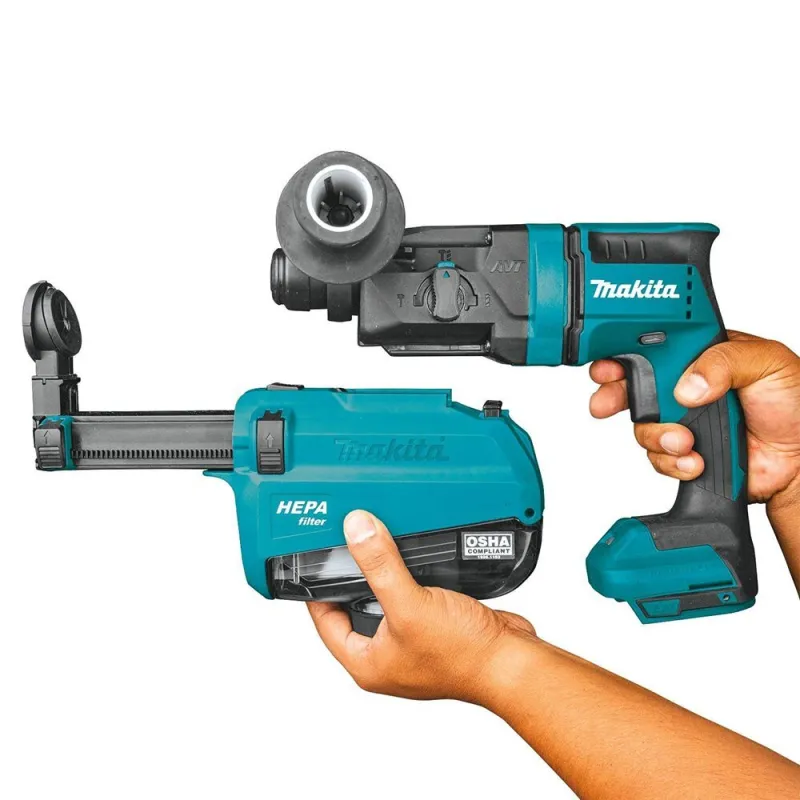

- (1) Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (DX05)
- (1) Sealing Cap (424474-5)
- (1) Tool bag
- (1) Side Handle
- (1) Depth Gauge
Makita XRH12ZW Features
- OSHA table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency during concrete drilling
- Extractor is activated by tool and powered by motor fan blade to maintain concrete dust suction performance
- Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
- The BL Brushless Motor eliminates carbon brushes, enabling the BL Motor to run cooler and more efficiently for longer life
- Torque limiting clutch is engineered to prevent gear damage by automatically disengaging gears if the bit binds
- Auto-start wireless system (AWS) which utilizes Bluetooth technology for wireless power-on/off communication between tool and dust extractor
- AWS capable with auto-start wireless transmitter (part no. 198901-5) sold separately
- Anti-vibration technology (AVT) is engineered to reduce vibration for increased comfort
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
- Electric brake allows the tool to be repositioned faster for maximum productivity
- Built-in L.E.D. light with an independent on/off illuminates the work area
- 3-mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only” for multiple applications
- Weighs only 7.5 lbs. with dust extractor and battery (battery not included) for reduced operator fatigue
- Variable speed trigger enables user to match the speed to the application
- Equipped with Star Protection Computer Controls to protect against overloading, over-discharging and over-heating
- Rapid Optimum Charger communicates with the battery’s built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature (battery and charger sold separately)
- Rapid Optimum Charger has a built-in fan to cool the battery for faster, more efficient charging (battery and charger sold separately)
- Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery and charger sold separately)
Makita XRH12ZW Specifications
| Max. Capacity (concrete drilling) | 11/16″ |
| Optimum Range (concrete drilling) | 5/32″ – 3/8″ |
| Impact Energy (Joules) | 1.7 J |
| Impact Energy (ft.lbs.) | 1.2 |
| Vibration (m/s²) | 11 |
| No Load Speed (variable speed) | 0 – 1,350 RPM |
| Blows Per Minute (variable speed) | 0 – 5,000 BPM |
| HEPA filter | Yes |
| Container Hole Count Capacity | 36 holes of dimension 3/8”x2-3/8” |
| Filter Life (Approx. container fillings) | 200 |
| Battery | 18V LXT Lithium-Ion |
| Overall Length | 11-7/8″ |
| Net Weight (with battery) | 7.5 lbs. |
| Bit Type | Accepts SDS-PLUS |
| Power Type | Cordless |
| Shipping Weight | 10.34 lbs. |
| UPC Code | 088381-873789 |
