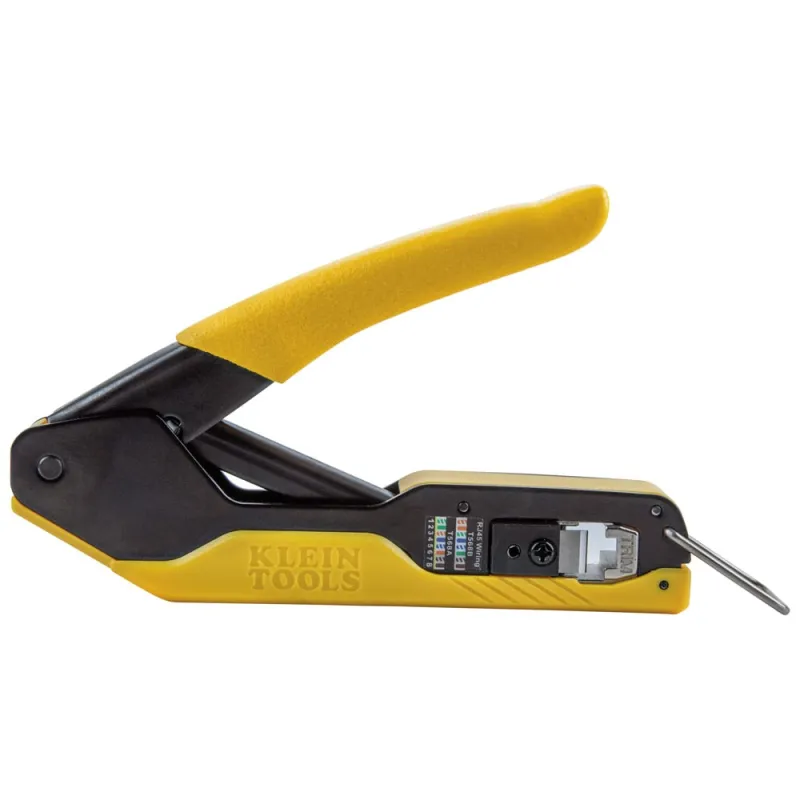

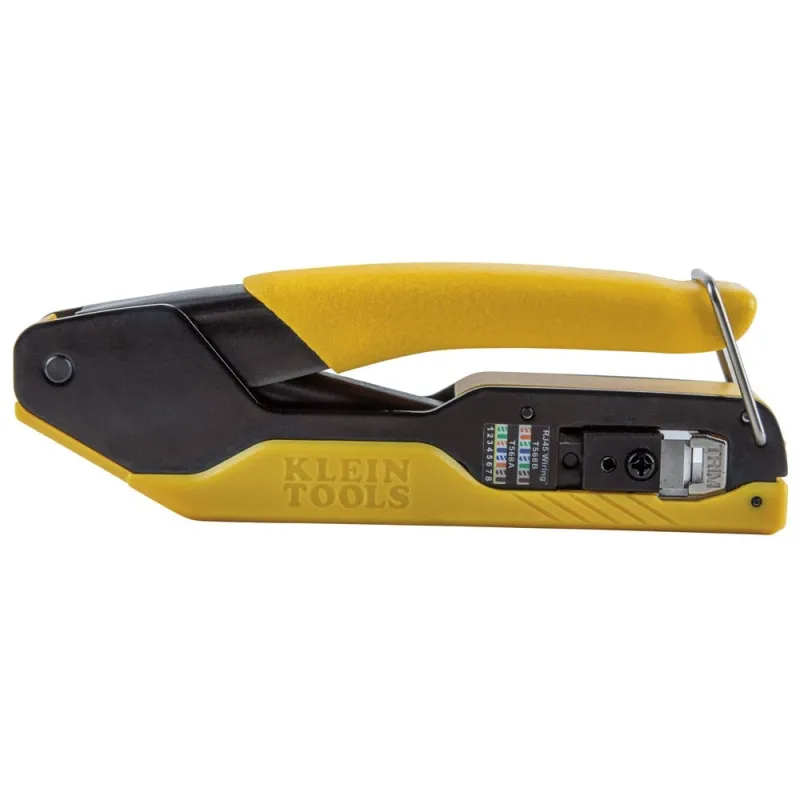

Klein VDV226-005 Compact Pass-Thru Modular Crimper
Klein Tools VDV226-005 Description
Reduce prep time significantly with Pass-Thru™ technology. This compact tool crimps and trims paired-conductor wires in CAT5e/CAT6 cables. Wiring diagram on the tool helps eliminate rework and reduce wasted materials. For use with Pass-Thru™ connector plugs (in packs of 10, 50 or 200).
Klein Tools VDV226-005 Includes
- (1) Compact Pass-Thru™ Modular Crimper
Klein Tools VDV226-005 Features
- Crimps Klein Tools’ RJ45 Pass-Thru™ connectors and trims conductor wires in one step
- Trims flush to end face of connector eliminating unintended contact between conductors
- On-tool wiring guide helps minimize wiring errors
- Fast, reliable RJ45 Pass-Thru™ modular crimper installs connectors for data applications
- Use with Klein Tools Pass-Thru™ Connectors
- Not for use with standard (non Pass-Thru™) connectors
- Replacement blades available (Cat. No. VDV999-078)
Klein Tools VDV226-005 Specifications
| Type | Crimper |
| Application | Cable Connection |
| Material | Steel with Chrome |
| Handle Color | Yellow/Black |
| Cuts & Strips | — |
| Cable Size | CAT5e, CAT6 |
| Connector Type | RJ45 Klein Tools Pass-Thru™ |
| Position/Pair/Conductors | 8-Position, 4-Pair/8-Conductor |
| Overall Length | 5.5″ (139.7 mm) |
| Overall Width | 1.75″ (44.5 mm) |
| Weight | 0.61 lb (0.28 kg) |
