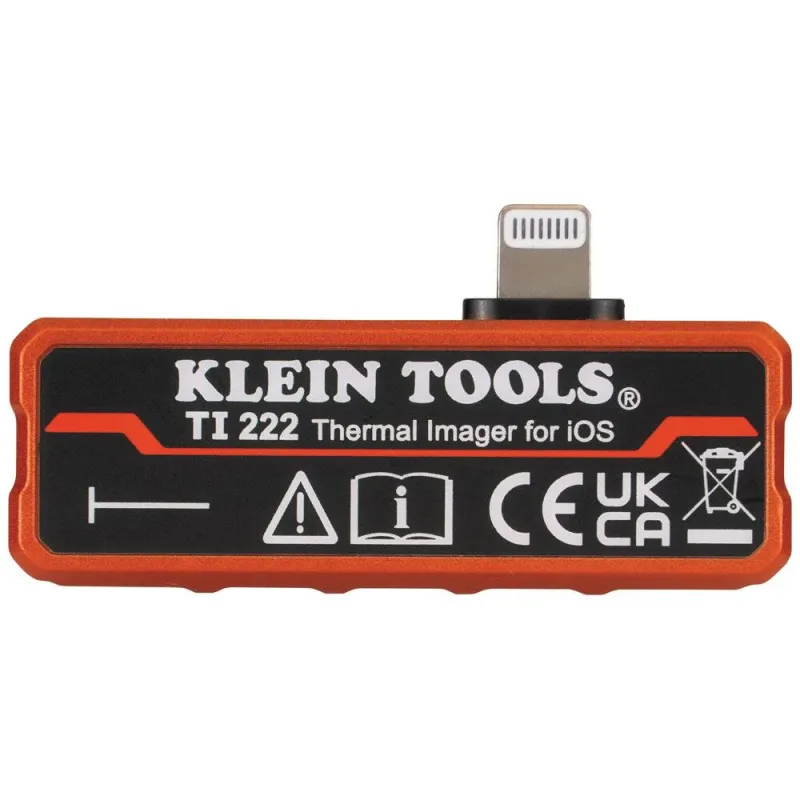

Klein TI222 Thermal Imager for iOS Devices
Klein Tools TI222 Description
The Klein Tools TI222 Thermal Imager for iOS Devices has 10,800 pixels delivering excellent resolution to troubleshoot hot and cold spots. This Thermal Imager is perfect for detecting hot spots in panels, on wiring, or on parts of equipment; helping find sources of energy loss within a home/building; helps detect moisture behind walls and flooring; clogs in pipes; and much more. Fits phone cases up to 1/16-Inch (1.5 mm). Phone cases thicker than 1/16-Inch (1.5 mm) may require removal of case for secure connection. Easily capture, store, and share thermal images and video through the Klein Tools Thermal Imager App, available for free in the App Store.
Klein Tools TI222 Includes
- (1) Thermal Imager
- (1) Hard Storage Case with Carabiner
Klein Tools TI222 Features
- Thermal Imager for iOS Devices has 10,800 pixels to deliver excellent resolution for troubleshooting hot and cold spots
- Fits phone cases up to 1/16-Inch (1.5 mm); phone cases thicker than 1/16-Inch (1.5 mm) may require removal of case for secure connection
- Easily capture, store and share thermal images and video, including time-lapse video
- Features touch screen temperature, high/low temperatures, and differential temperature readout
- View temperature ranges from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius) in three color palettes; ironbow, rainbow, or grayscale
- Includes high/low temperature alarms to monitor systems
- Compatible with iOS devices 11 and higher
- Klein Tools Thermal Imager App is available for free in the App Store
- Durable 6.6-Foot (2 m) drop test protection
Klein Tools TI222 Specifications
| Overall Length | 2.13″ (5.4 cm) |
| Overall Width | 0.73″ (1.9 cm) |
| Overall Height | 1.07″ (2.7 cm) |
| Accuracy | +/-2°C or 2% (whichever is greater). Not calibrated below 10°C (14°F) |
| Field of View | Horizontal |
| Emissivity | 0.01 to 0.99, Adjustable |
| Thermal Sensitivity | |
| Sensor Resolution | 10,800 Pixels |
| Sensor Type | VOx Microbolometer |
| Temperature Range | -4° to 752°F (-20° to 400°C) |
| Spectral Range | 8 to 14 ?m |
| Photo Capture | Yes |
| Laser Sighting | No |
| Display Resolution | 10,800 Pixels |
| Display | External Device |
| Type | Thermal Imager |
| Maximum Frames per Second | |
| Batteries | Powered from External Device |
