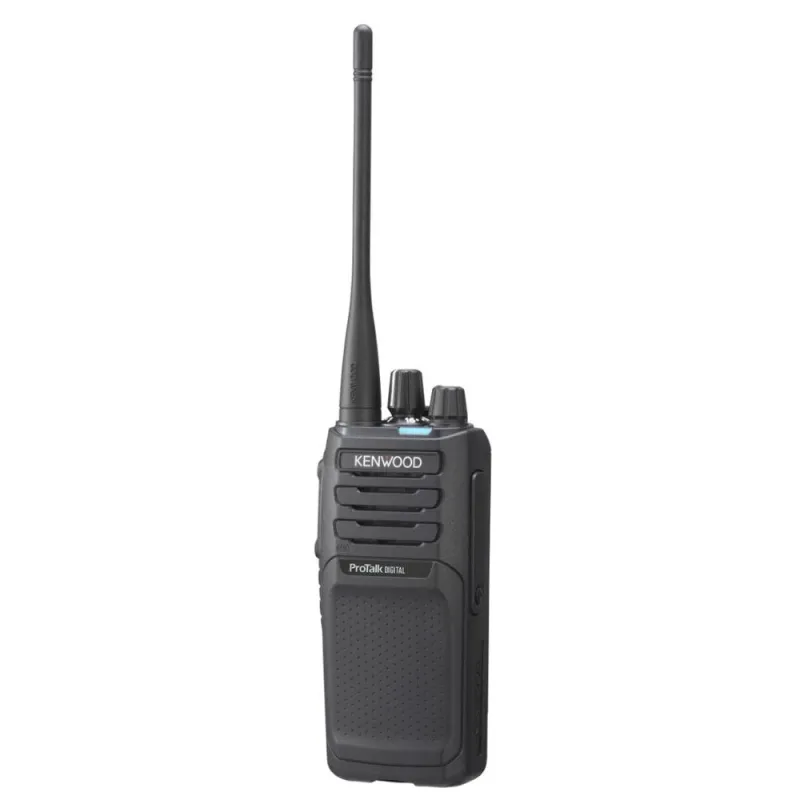

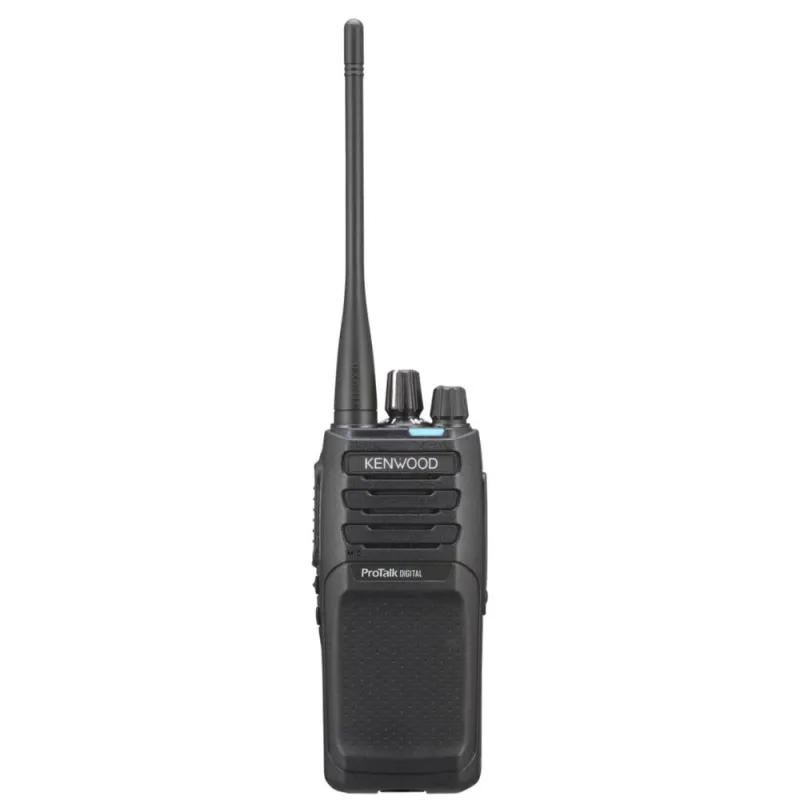

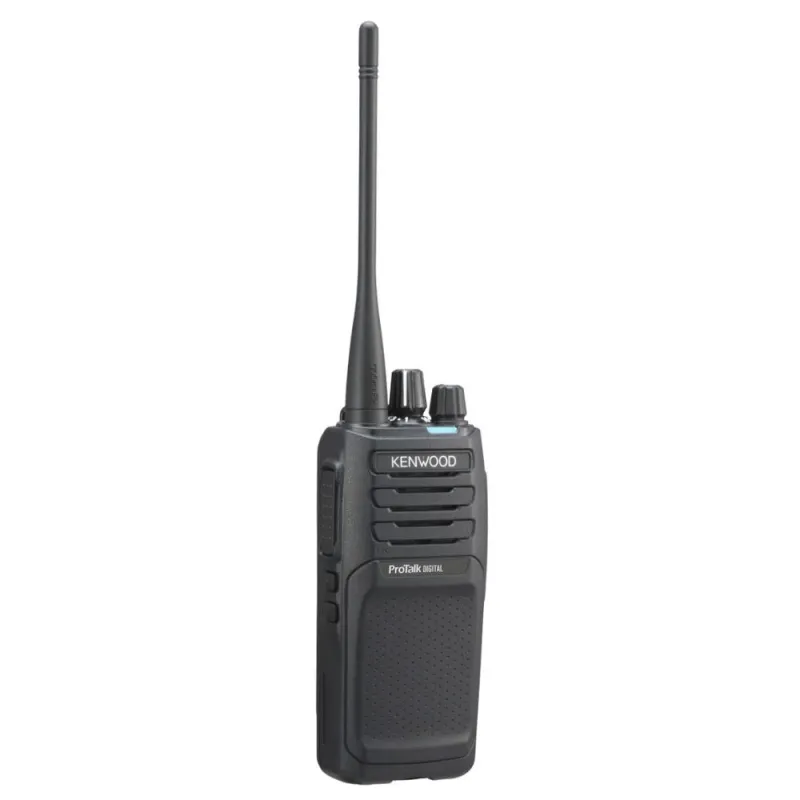

Kenwood NX-P1300AUK 5 Watt, 16 Channel UHF Two-Way Radio
Kenwood NX-P1300AUK Description
The Kenwood ProTalk NX-P1300AUK is a 5 Watt 64 Channel Analog UHF Two Way Radio that can be upgraded to operate on either DMR or NXDN Digital Standards based on customer needs. You’ll find this is an affordable analog walkie talkie with 16 easily accessible channels on the dial with added functionality for those needing more channels or digital capabilities. Kenwood NX-P1300AUK walkie talkies are impressively built, exceeding Military Standard for Durability and Water Resistance while providing Kenwood’s impressive audio quality.
Kenwood NX-P1300AUK Includes
- (1) UHF Two Way Radio
- (1) Heavy Duty Lithium Ion Battery
- (1) Belt Clip
- (1) Removable Antenna
- (1) Fast Charger
Kenwood NX-P1300AUK Features
- 450-470 MHz UHF preset frequencies
- 5W output
- 64 channels, 4 zones 16 channels each
- IP54/55 dust and water intrusion rated
- Second PTT
- 7-color LED
- Cloning capable
- Voice announcement
- Button lock
- Voice Inversion Scrambler
- Time-out timer
- Calling alert
- QT/DQT codes
- Compander
- Adjustable microphone gain
- Low battery warning.
Kenwood NX-P1300AUK Specifications
| Depth | 1.32″ |
| Width | 2.13″ |
| Height | 4.84″ |
| Pre-Set Frequencies | MHz 451-470 MHz |
| Max. Channels per Radio | 64 |
| Number of Zones | 4 |
| Max. Channels per Zone | 16 |
| Channel Spacing Analog | 25*1 / 12.5 kHz |
| Power Supply | 7.5V DC ± 20% |
| Battery Life (5-5-90) | KNB-45L (2000mAh) |
| Operating Temperature(Radio only)*2 | -22° F to +140° F (-30° C to +60° C) |
| Frequency Stability | ± .5 ppm |
| Antenna Impedance | 50 ohm |
| Receiver Sensitivity | Analog @ 12.5/25 kHz (12 dB SINAD) |
| Receiver Selectivity | Analog @ 12.5/25 kHz |
| Intermodulation Distortion | 70 dB |
| Spurious Rejection | 70 dB |
| Receiver Audio Distortion | 7% |
| Receiver Audio Output | 1 W / 12 ohm (Internal Output), 500 mW / 8 ohm (External Output) |
| RF Power Output (High / Low) | 5 W / 4W / 1 W |
| Spurious Emission | 70 dB |
| FM Hum & Noise Analog @ 12.5 / 25 kHz | 40 dB / 45 dB |
| Transmitter Audio Distortion | 2% |
