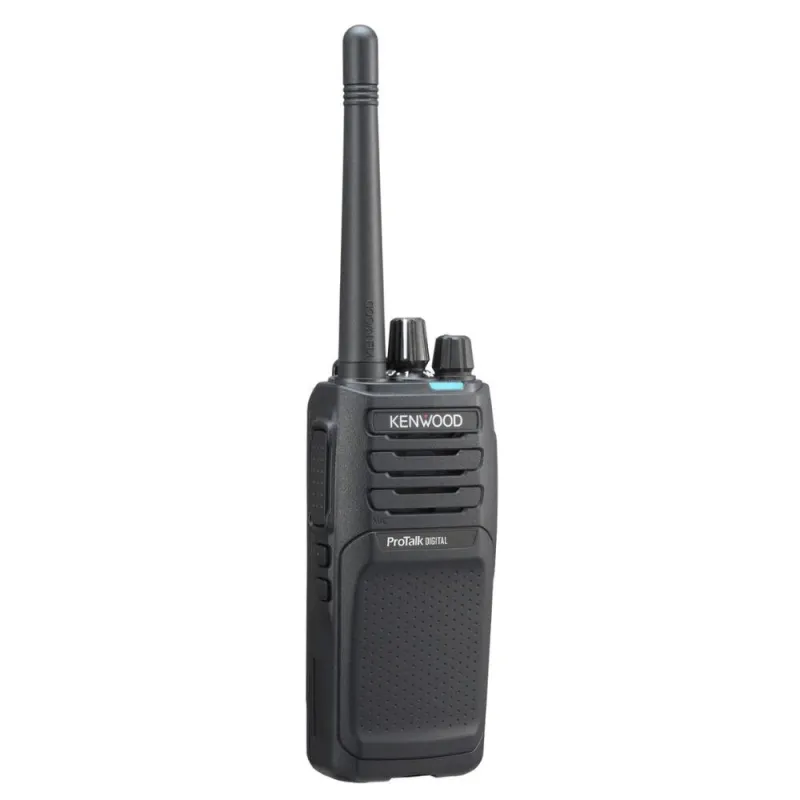

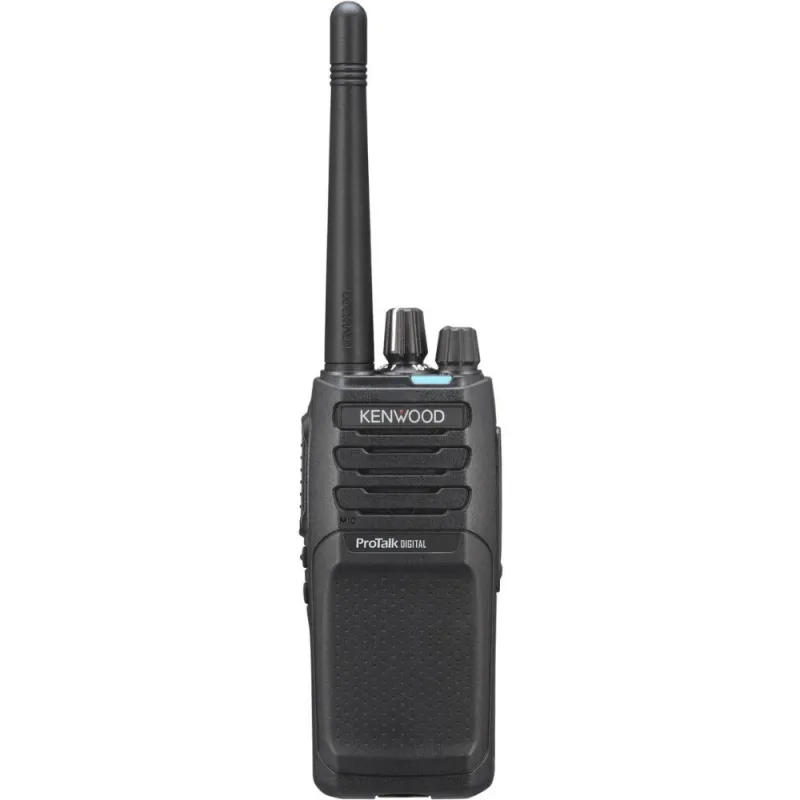

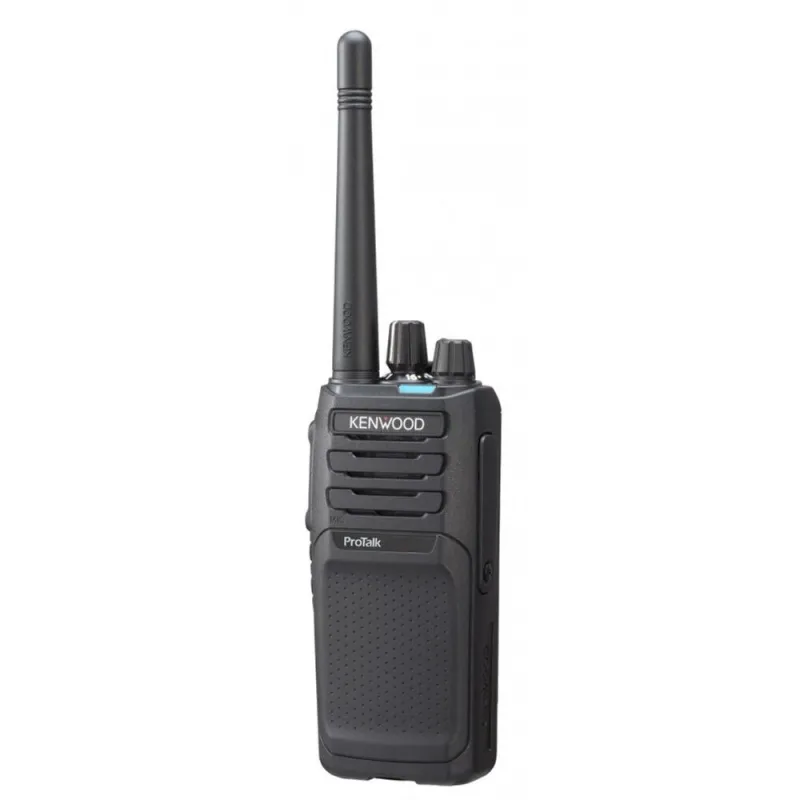

Kenwood NX-P1200NVK 5 Watt, 16 Channel, Digital NXDN or Analog, VHF Two-Way Radio
Kenwood NX-P1200NVK Description
The Kenwood ProTalk NX-P1200NVK is a 5 Watt 64 Channel Digital VHF Two Way Radio that can operate on either DMR or NXDN Digital Standards based on your specific need. You’ll find this is an affordable digital walkie talkie with 16 easily accessible channels on the dial with added functionality for those needing more channels. Kenwood NX-P1200NVK walkie talkies are impressively built, exceeding Military Standard for Durability and Water Resistance while providing Kenwood’s impressive audio quality.
Kenwood NX-P1200NVK Includes
- (1) VHF Two Way Radio
- (1) Heavy Duty Lithium Ion Battery
- (1) Belt Clip
- (1) Removable Antenna
- (1) Fast Charger
Kenwood NX-P1200NVK Features
- 151-159 MHz VHF
- 64 channels, 4 zones 16 channels each
- NXDN Digital and Analog operation
- IP54/55 dust and water intrusion rated
- Second PTT
- 7-color LED
- Cloning capable
- Voice announcement
- Button lock
- Time-out timer
- Calling alert
- QT/DQT codes
- Compander
- Adjustable microphone gain
- Low battery warning
Kenwood NX-P1200NVK Specifications
| Depth | 1.48″ |
| Width | 2.13″ |
| Height | 4.84″ |
| Frequency Range | 151-159 MHz |
| Number of Channels | 64 |
| Zones | 4 |
| Max. Channels per Zone | 16 |
| Channel Spacing Analog Digital | 25*1 / 12.5 kHz, 12.5 / 6.25 kHz |
| Operating Voltage | 7.5V DC ± 20% |
| Battery Life (5-5-90) | KNB-45L (2000mAh) |
| Operating Temperature(Radio only)*2 | -22° F to +140° F (-30° C to +60° C) |
| Frequency Stability | ± .5 ppm |
| Antenna Impedance | 50 ohm |
| Receiver Sensitivity | Digital @ 6.25 kHz (3% BER) |
| Reciver Selectivity | Analog @ 12.5 kHz |
| Intermodulation Distortion | 70 dB |
| Spurious Rejection | 70 dB |
| Receiver Audio Distortion | 7% |
| Receiver Audio Output | 1 W / 12 ohm (Internal Output), 500 mW / 8 ohm (External Output) |
| RF Power Output (High / Low) | 5 W / 4W / 1 W |
| Spurious Emission | 70 dB |
| FM Hum & Noise Analog @ 12.5 / 25 kHz | 40 dB / 45 dB |
| Transmitter Audio Distortion | 2% |
