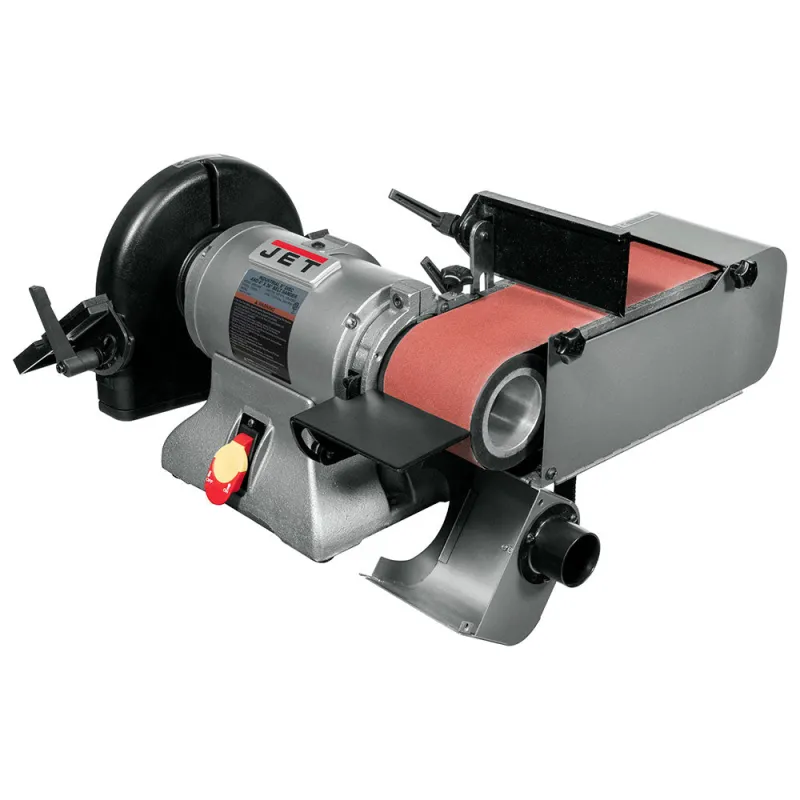

Jet JT9-578634 Single Speed Belt and Disc Grinder, IBDG-436
Jet 578634 Description
Known for their heavy-duty, industrial-strength construction and powerful one horsepower motor, JET’s Industrial Belt & Disc Grinders are a serious addition to your shop.
Jet 578634 Includes
- (1) Grinder
Jet 578634 Features
- The wide range of belt sizes and speed configurations as well as multiple belt and worktable positions deliver a solution for nearly an infinite number of applications.
- The cast iron work-rests rigidly support your workpiece and are completely adjustable without the need for any tools.
- Delivering superior durability, these industrial disc and belt grinders include cast iron bases, steel motor housings, and all-steel shrouds.
- Following strict guidelines and electrical requirements, each Industrial Bench Belt & Disc Grinders are CSA/US certified and TAA compliant.
Jet 578634 Specifications
| Motor (HP) | 1 |
| Prewired (V.) | 115 |
| Amperage Draw @ 115V 1Ph | 11 |
| Belt Grit | 80 |
| Belt Size (W x L) (In.) | 4 x 36 |
| Belt Speed (SFPM) | 3769 |
| Disc Diameter (In.) | 9 |
| Disc Speed (RPM) | 3600 |
| Dust Port Size (In.) | 2 |
| Overall Dimensions Belt Vertical(L x W x H / in.) | 25-3/8 x 21-3/4 x 20-3/4 |
| Overall Dimensions Belt Horizontal(L x W x H / in.) | 25-3/4 x 21-3/4 x 11-3/4 |
| Net Weight (lbs.) | 73 |
| Gross Weight (lbs.) | 92 |
