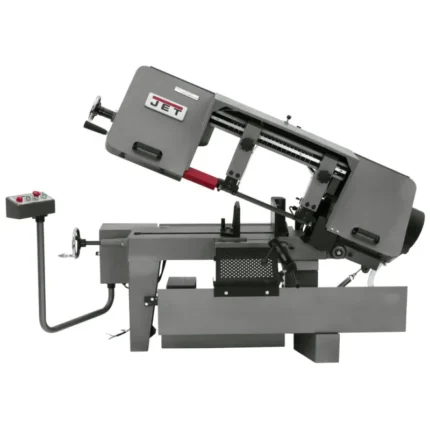

Jet JT9-414478 J-7040, 10″ x 16″ Horizontal Bandsaw
Jet 414478 Description
Exclusive 6-point blade guide assemblies and swivel control panel on this rugged JET saw enhance overall function and
Jet 414478 Features
- For added safety, the J-7040 follows strict guidelines and electrical requirements to be certified by CSA Group
- Swing away control panel houses major saw controls
- Variable speed drive system allows the operator to easily fine tune the blade speed
- Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
- Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
- Patented 3-Jaw vise with rapid action moveable jaw for faster set up
- One-piece wheel cover
- Coolant system
- Adjustable material stop
- 1″ Bi-Metal blade
Jet 414478 Specifications
| Round at 90 Degrees (In.) | 10 |
| Blade Size (In.) | 1 x .035 x 135 |
| Drive | Variable Speed |
| Blade Speeds (SFPM) | 100 – 350 |
| Round at 45 Degrees (In.) | 10 |
| Rectangle at 90 Degrees (In.) | 10 x 10 and 7 x 16 |
| Blade Wheel Diameter (In.) | 14 |
| Bed Height (In.) | 23-1/2 |
| Cutting Capacity (W x D) (In.) | 10 x 16 |
| Rectangle at 45 Degrees (In.) | 6-1/2 x 11 |
| Weight (Lbs.) | 927 |
| Vise Swivels (Deg.) | 45° |
| Blade Length (In.) | 130 |
| Motor (HP) | 2 HP, 230V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 75-1/2 x 33 x 41 |
