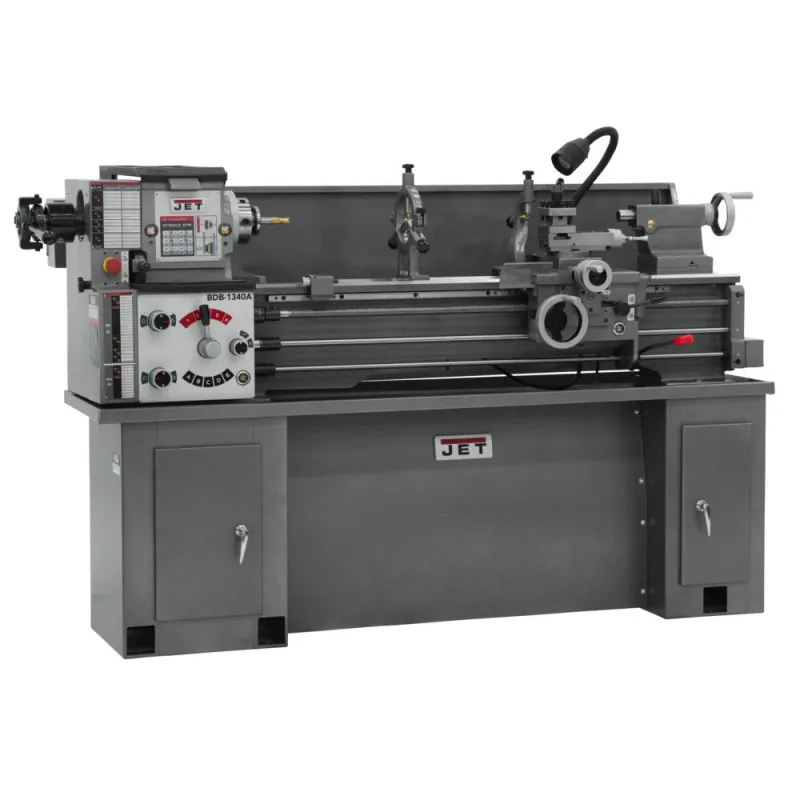

Jet JT9-321111 BDB-1340A With Collet Closer
Jet 321111 Description
JET Belt Drive Bench Lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick change gearbox allows for fast and easy gear changes for metric threading. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty
Jet 321111 Features
- One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
- Enclosed gearbox design provides smooth, quiet operation
- Fast, easy speed changes
- Low voltage motor controls
- Helical cut headstock gears reudce noise
- Change gears allow metric threading
- Spindle is supported by precision tapered roller bearings
- V-way bed is induction hardened and ground
- Gap bed section provided for large diameter work
- Independent leadscrew and feed rod
Jet 321111 Specifications
| Number of Longitudinal and Cross Feed Rates | 38 |
| Number of Metric Threads | 23 |
| Max Tool Size (In.) | 5/8 x 5/8 |
| Drive | SV_1375591258788 |
| Overall Dimensions (L x W x H) (In.) | 71 x 32 x 45 |
| Swing Through Gap (In.) | 18-3/4 |
| Weight (Lbs.) | 1,175 |
| Width of Bed (In.) | 7-3/8 |
| Motor (HP) | 2 HP, 230V, 1Ph |
| Swing Over Bed (In.) | 13 |
| Cross Slide Travel (In.) | 6-5/16 |
| Taper in Tailstock Spindle | MT-3 |
| Compound Slide Travel (In.) | 2-11/16 |
| Range of Metric Threads | 0.45-10 |
| Carriage Travel (In.) | 35 |
| Steady Rest Capacity (In.) | 2-5/8 |
| Number of Inch Threads | 38 |
| Range of Spindle Speeds (RPM) | 60 – 1,240 |
| Spindle Mount | D1-4 |
